SA23002C - Single Synchronous Buck Converter

SA23002C Description

General .
The SA23002C high-efficiency synchronous Buck converter can deliver 2A output current over an input voltage range from 2.

SA23002C Features

* 2.8V to 5.5V Input Voltage Range
* Up to 2A Output Current
* External Adjustable Voltage with ±1.5% Reference Accuracy
* 1μA Shutdown Current (Typical)
* Fixed 2.35MHz Switching Frequency Minimizes Required External Components
* 100% Duty-Cycle Capable
* Fixed Frequency

SA23002C Applications

* Applications
* Automotive Infotainment and Cluster
* Advanced Driver Assistance System (ADAS)
* Automotive Display
* Other Electronic Equipment VIN: 2.8V to 5.5V 8 VIN L SW 2 7 VIN FB 4 Rtop SA23002C 5 EN PGND 1 Cin 6 PG AGND 3 Rbot Figure 1. Schematic Diagram VOUT：0.6

📥 Download Datasheet

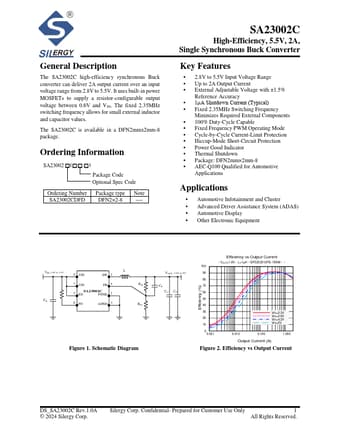

Preview of SA23002C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SA23002C
Manufacturer
Silergy
File Size
1.32 MB
Datasheet
SA23002C-Silergy.pdf
Description
Single Synchronous Buck Converter
