SA23002B - 2A Single Synchronous Buck Converter

Product Overview

Silergy

Datasheet Details

Part number	SA23002B
Manufacturer	Silergy
File Size	1.17 MB
Description	2A Single Synchronous Buck Converter
Datasheet	SA23002B Datasheet

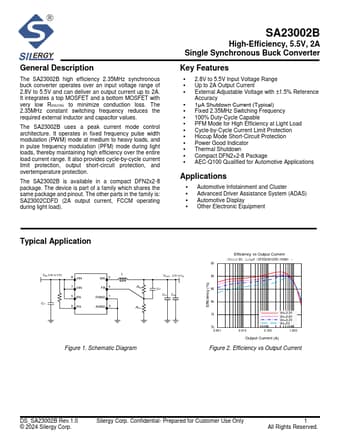

Additional preview pages of the SA23002B datasheet.

Product details

Description

The SA23002B high efficiency 2.35MHz synchronous buck converter operates over an input voltage range of 2.8V to 5.5V and can deliver an output current up to 2A.

Features

2.8V to 5.5V Input Voltage Range.
Up to 2A Output Current.
External Adjustable Voltage with ±1.5% Reference Accuracy.
1μA Shutdown Current (Typical).
Fixed 2.35MHz Switching Frequency.
100% Duty-Cycle Capable.
PFM Mode for High Efficiency at Light Load.
Cycle-by-Cycle Current Limit Protection.
Hiccup Mode Short-Circuit Protection.
Power Good Indicator.
Thermal Shutdown.
Compact DFN2×2-8 Package.
AEC-Q100 Qualified for Automotive A.
