SA56606-27 - CMOS system reset

This page provides the datasheet information for the SA56606-27, a member of the SA5 CMOS system reset family.

Datasheet Summary

Description

The SA56606-XX is a CMOS device designed to generate a reset signal for a variety of microprocessor and logic systems.

Accurate reset signals are generated during momentary power interruptions or whenever power supply voltages sag to intolerable levels.

Features

  • 12 VDC maximum operating voltage.
  • CMOS N-channel Open Drain output.
  • Offered in reset thresholds of.
  • Available in SOT23-5 surface mount package.

📥 Download Datasheet

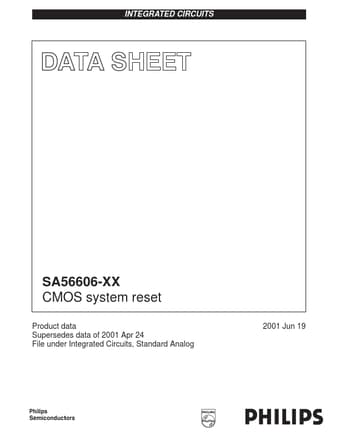

Datasheet preview – SA56606-27
