SA647 - Low-voltage digital IF receiver

SA647 Description

INTEGRATED CIRCUITS SA647 Low-voltage digital IF receiver Product specification 1998 Aug 10 Philips Semiconductors Philips Semiconductors Product .
The SA647 is a low-voltage high performance monolithic digital system with high-speed RSSI incorporating a mixer, oscillator with buffered output, two.

SA647 Features

* VCC = 2.7 to 5.5V
* Low power receiver (5.3mA @ 3V)
* Power down mode (ICC = 110µA)
* Fast RSSI rise and fall times
* Extended RSSI range with temperature compensation
* RSSI op amp
* 2MHz limiter small signal bandwidth
* Filter matc

SA647 Applications

* and will function down to 2.7V. The limiter amplifier has differential outputs with 2MHz small signal bandwidth. The RSSI output has access to the feedback pin. This enables the designer to level adjust the outputs or add filtering. APPLICATIONS
* NADC (North American Digital Cellular)

📥 Download Datasheet

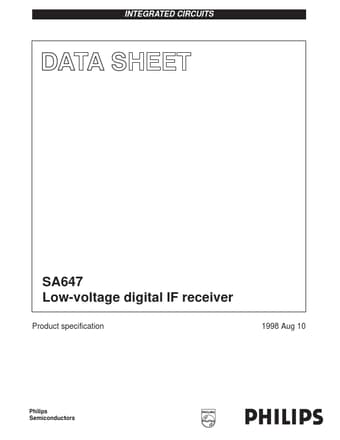

Preview of SA647 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SA647
Manufacturer
Philips
File Size
123.79 KB
Datasheet
SA647_PhilipsSemiconductors.pdf
Description
Low-voltage digital IF receiver
