SA601 - Low voltage LNA and mixer - 1GHz

SA601 Description

Philips Semiconductors RF Communications Products Product specification Low voltage LNA and mixer - 1GHz SA601 .
The SA601 is a combined RF amplifier and mixer designed for high-performance low-power communication systems from 800-1200MHz.

SA601 Features

* Low current consumption: 7.4mA nominal, 4.4mA with the mixer powered-down GND 8 LOIN1 9 LOIN2 10
* Outstanding LNA noise figure: 1.6dB at 900MHz
* High system power gain: 18dB (LNA + Mixer) at 900MHz
* Excellent gain stability versus temperature and supply voltag

SA601 Applications

* 900MHz cellular front-end (NADC, GSM, AMPS, TACS)
* 900MHz cordless front-end (CT1, CT2)

📥 Download Datasheet

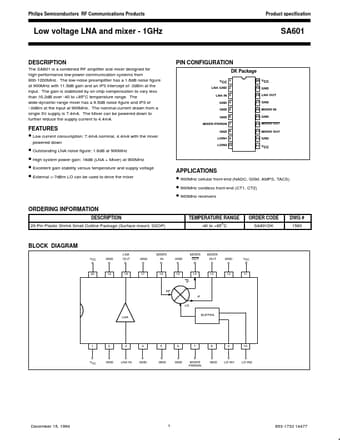

Preview of SA601 PDF
