SA600 1Ghz LNA and Mixer

The NE/SA600 is a combined low noise amplifier (LNA) and mixer designed for high-performance low-power communication systems from 800-1200MHz. The low-noise preamplifier has a 2dB noise figure at 900MHz with 16dB gain and an IM3 intercept of -10dBm at the input. Input and output impedances are 50Ω a.

SA600 Features

* SR00082 Figure 1. Pin Configuration

* Excellent noise figure: 2dB for the amplifier and 14dB for the mixer at 900MHz APPLICATIONS

* Excellent gain stability versus temperature

* Switchable overload capability

* Amplifier matched to 50Ω

* Mixer input match

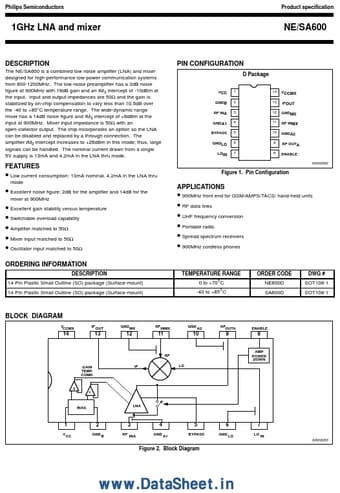

SA600_PhilipsSemiconductors.pdf
