SA604A - High-performance low-power FM IF system

SA604A Description

SA604A High-performance low-power FM IF system Rev.4.3 * 13 July 2016 Product data sheet 1.General .
The SA604A is an improved monolithic low-power FM IF system incorporating two limiting intermediate frequency amplifiers, quadrature detector, muting,.

SA604A Features

* Low power consumption: 3.3 mA typical
* Temperature compensated logarithmic Received Signal Strength Indicator (RSSI) with a dynamic range in excess of 90 dB
* Two audio outputs
* muted and un-muted
* Low external component count; suitable for crystal/ceramic filters

SA604A Applications

* Cellular radio FM IF
* High-performance communications receivers
* Intermediate frequency amplification and detection up to 25 MHz
* RF level meter
* Spectrum analyzer
* Instrumentation
* FSK and ASK data receivers NXP Semiconductors SA604A High-performance low-power

📥 Download Datasheet

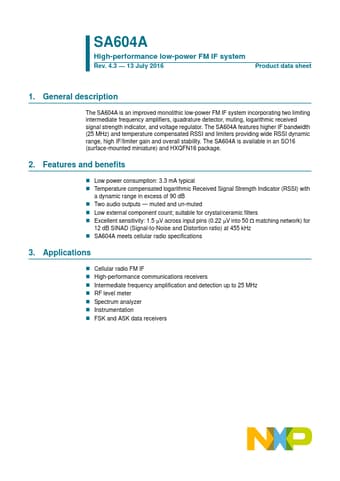

Preview of SA604A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SA604A
Manufacturer
NXP ↗
File Size
1.07 MB
Datasheet
SA604A-NXP.pdf
Description
High-performance low-power FM IF system
