SA612A - Double-balanced mixer and oscillator

SA612A Description

SA612A Double-balanced mixer and oscillator Rev.3 * 4 June 2014 Product data sheet 1.General .
The SA612A is a low-power VHF monolithic double-balanced mixer with on-board oscillator and voltage regulator.

SA612A Features

* Low current consumption
* Low cost
* Operation to 500 MHz
* Low radiated energy
* Low external parts count; suitable for crystal/ceramic filter

SA612A Applications

* Cordless telephone
* Portable radio
* VHF transceivers
* RF data links
* Sonobuoys
* Communications receivers
* Broadband LANs
* HF and VHF frequency conversion
* Cellular radio mixer/oscillator NXP Semiconductors SA612A Double-balanced mixer and oscillator 4

📥 Download Datasheet

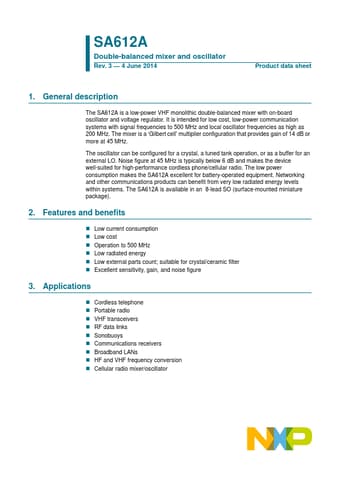

Preview of SA612A PDF
