SA630

Single-Pole Double-Throw (SPDT) switch

SA630 Features

* Wideband (DC to 1 GHz)

* Low through loss (1 dB typical at 200 MHz)

* Unused input is terminated internally in 50 

* Excellent overload capability (1 dB gain compression point +18 dBm at 300 MHz)

* Low DC power (170 A from 5 V supply)

* Fast switching (20 ns typical)

SA630 General Description

The SA630 is a wideband RF switch fabricated in BiCMOS technology and incorporating on-chip CMOS/TTL compatible drivers. Its primary function is to switch signals in the frequency range DC to 1 GHz from one 50  channel to another. The switch is activated by a CMOS/TTL compatible signal applied to t.

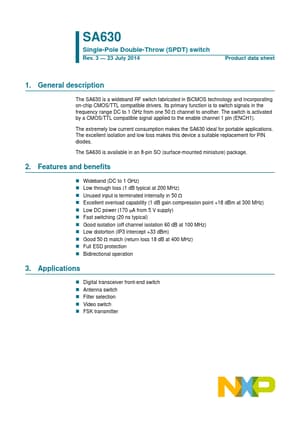

SA630 Datasheet (288.06 KB)

Preview of SA630 PDF

Datasheet Details

Part number:

SA630

Manufacturer:

NXP ↗

File Size:

288.06 KB

Description:

Single-pole double-throw (spdt) switch.
