SA6392 - 4CHANNEL BTL DRIVER

Silan Microelectronics

📥 Download Datasheet

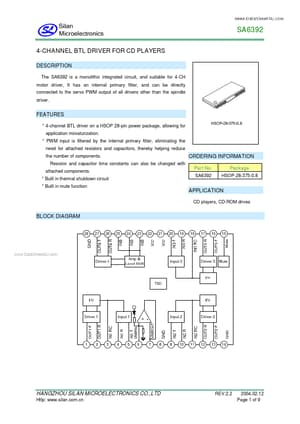

SA6392 Datasheet Preview — Preview of SA6392 PDF

Datasheet Details

Part number: SA6392
Manufacturer: Silan Microelectronics
File Size: 221.04 KB
Datasheet: SA6392_SilanMicroelectronics.pdf
Description: 4CHANNEL BTL DRIVER

SA6392 Product details

Description

The SA6392 is a monolithic integrated circuit, and suitable for 4-CH motor driver, It has an internal primary filter, and can be directly connected to the servo PWM output of all drivers other than the spindle driver.

Features

4-channel BTL driver on a HSOP 28-pin power package, allowing for application miniaturization.
PWM input is filtered by the internal primary filter, eliminating the need for attached resistors and capacitors, thereby helping reduce the number of components. Resistor and capacitor time constants can also be changed with attached components.
Built in thermal shutdown circuit.
Built in mute function.
