SA636 - Low voltage high performance mixer FM IF system

NXP

📥 Download Datasheet

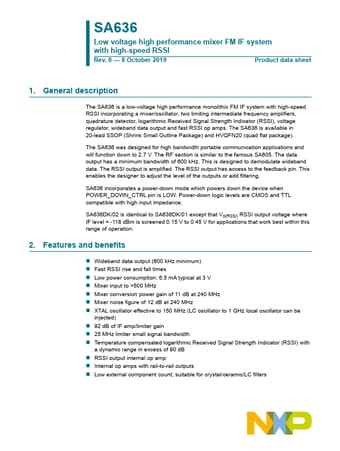

SA636 Datasheet Preview — Preview of SA636 PDF

Datasheet Details

Part number: SA636
Manufacturer: NXP ↗
File Size: 2.13 MB
Datasheet: SA636-NXP.pdf
Description: Low voltage high performance mixer FM IF system

SA636 Product details

Description

The SA636 is a low-voltage high performance monolithic FM IF system with high-speed RSSI incorporating a mixer/oscillator, two limiting intermediate frequency amplifiers, quadrature detector, logarithmic Received Signal Strength Indicator (RSSI), voltage regulator, wideband data output and fast RSSI op amps.

Features

Wideband data output (600 kHz minimum).
Fast RSSI rise and fall times.
Low power consumption: 6.5 mA typical at 3 V.
Mixer input to >500 MHz.
Mixer conversion power gain of 11 dB at 240 MHz.
Mixer noise figure of 12 dB at 240 MHz.
XTAL oscillator effective to 150 MHz (LC oscillator to 1 GHz local oscillator can be injected).
92 dB of IF amp/limiter gain.
25 MHz limiter small signal bandwidth.
Temperature compensated logarithmic Received Signal S.
