SA637 - Low-voltage digital IF receiver

Philips

📥 Download Datasheet

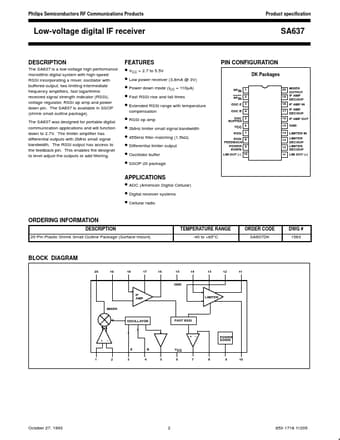

SA637 Datasheet Preview — Preview of SA637 PDF

Datasheet Details

Part number: SA637
Manufacturer: Philips
File Size: 144.31 KB
Datasheet: SA637_PhilipsSemiconductors.pdf
Description: Low-voltage digital IF receiver

SA637 Product details

Description

The SA637 is a low-voltage high performance monolithic digital system with high-speed RSSI incorporating a mixer, oscillator with buffered output, two limiting intermediate frequency amplifiers, fast logarithmic received signal strength indicator (RSSI), voltage regulator, RSSI op amp and power down pin.

Features

VCC = 2.7 to 5.5V.
Low power receiver (3.8mA @ 3V).
Power down mode (ICC = 110µA).
Fast RSSI rise and fall times.
Extended RSSI range with temperature compensation PIN.
