SA611

1GHz low voltage LNA and mixer

SA611 Features

* Low current consumption

* Outstanding gain and noise figure

* Excellent gain stability versus temperature and supply voltage

* LNA and mixer power down capability GND 10 SR00124 Figure 1. Pin Configuration APPLICATIONS

* 900MHz cellular and cordless fr

SA611 General Description

The SA611 is a combined low-noise amplifier, and mixer designed for high-performance low-power communication systems from 800-1000MHz. The low-noise preamplifier has a 1.7dB noise figure at 881MHz with 15dB gain and an IP3 intercept of -7dBm at the input. The gain is stabilized by on-chip compensati.

SA611 Datasheet (106.33 KB)

Preview of SA611 PDF

Datasheet Details

Part number:

SA611

Manufacturer:

Philips

File Size:

106.33 KB

Description:

1ghz low voltage lna and mixer.

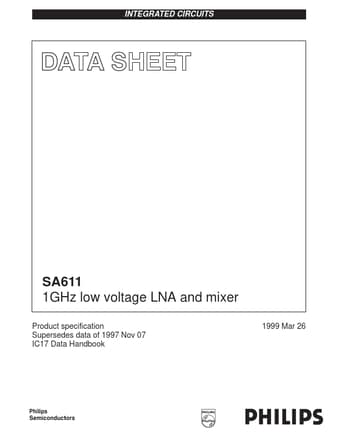

INTEGRATED CIRCUITS SA611 1GHz low voltage LNA and mixer Product specification Supersedes data of 1997 Nov 07 IC17 Data Handbook 1999 Mar 26 Philips.
