SA617 - Low-voltage high performance mixer FM IF system

SA617 Description

RF COMMUNICATIONS PRODUCTS SA617 Low-voltage high performance mixer FM IF system Product specification Replaces data of November 3, 1992 IC17 Data Ha.
The SA617 is a low voltage high performance monolithic FM IF system incorporating a mixer/oscillator, two limiting intermediate frequency amplifiers,.

SA617 Features

* Low power consumption: 3.5mA typical at 3V
* Mixer input to >150MHz
* Mixer conversion power gain of 17dB at 45MHz
* XTAL oscillator effective to 150MHz (L. C. oscillator or external oscillator can be used at higher frequencies) SR00405 Figure 1. Pin Configuration

SA617 Applications

* and will function down to 2.7V. The RF section is similar to the famous SA605. The audio output has an internal amplifier with the feedback pin accessible. The RSSI output is buffered. The SA617 also has an extra limiter output. This signal is buffered from the output of the limiter and can be used

📥 Download Datasheet

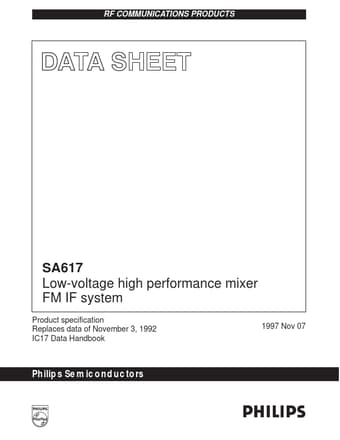

Preview of SA617 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SA617
Manufacturer
Philips
File Size
139.74 KB
Datasheet
SA617_PhilipsSemiconductors.pdf
Description
Low-voltage high performance mixer FM IF system
