SA612

Double-balanced mixer and oscillator

Philips

SA612 Features

* Low current consumption

* Low cost

* Operation to 500MHz

* Low radiated energy

* Low external parts count; suitable for crystal/ceramic filter

* Excellent sensitivity, gain, and noise figure ORDERING INFORMATION DESCRIPTION 8-Pin Plastic Dual In-Lin

SA612 General Description

The SA612A is a low-power VHF monolithic double-balanced mixer with on-board oscillator and voltage regulator. It is intended for low cost, low power communication systems with signal frequencies to 500MHz and local oscillator frequencies as high as 200MHz. The mixer is a “Gilbert cell” multiplier c.

SA612 Datasheet (110.09 KB)

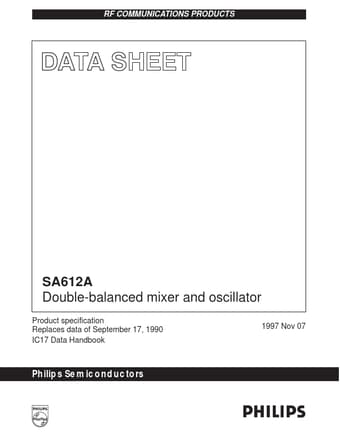

SA612 Datasheet Preview — Preview of SA612 PDF

Datasheet Details

Part number:

SA612

Manufacturer:

Philips

File Size:

110.09 KB

Description:

Double-balanced mixer and oscillator.
RF COMMUNICATIONS PRODUCTS SA612A Double-balanced mixer and oscillator Product specification Replaces data of September 17, 1990 IC17 Data Handbook 1.
