SA614A - Low power FM IF system

SA614A Description

SA614A Low power FM IF system Rev.4 * 14 February 2014 Product data sheet 1.General .
The SA614A is an improved monolithic low-power FM IF system.

SA614A Features

* Low power consumption: 3.3 mA typical
* Temperature compensated logarithmic RSSI with a 90 dB dynamic range
* Two audio outputs - muted and unmuted
* Low external component count; suitable for crystal/ceramic filters
* Excellent sensitivity: 1.5 V across inputs pins (0.22 V i

SA614A Applications

* Cellular radio FM IF
* High performance communication receiver
* Intermediate frequency amplification and detection up to 25 MHz
* RF level meter
* Spectrum analyzer
* Instrumentation
* FSK and ASK data receivers 4. Ordering information Table 1. Ordering information Ta

📥 Download Datasheet

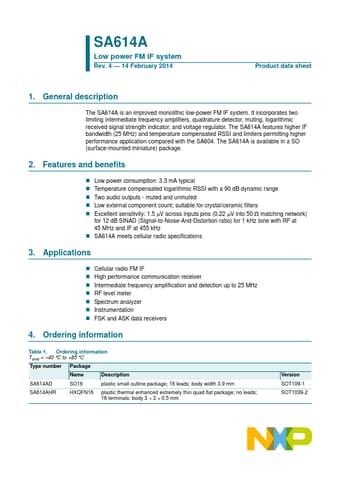

Preview of SA614A PDF
