SA900 - I/Q transmit modulator

SA900 Description

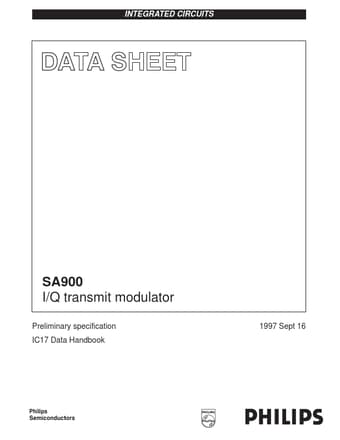

INTEGRATED CIRCUITS SA900 I/Q transmit modulator Preliminary specification IC17 Data Handbook 1997 Sept 16 Philips Semiconductors Philips Semicondu.
The SA900 is a monolithic high performance, multi-function transmit modulator for use in cellular radio applications, fabricated in QUBiC BiCMOS techn.

SA900 Features

* both analog (AMPS) mode and complex, I/Q digital (NADC IS
* 136) mode quadrature modulation functions, a PLL synthesizer with VCO, crystal oscillator, programmable prescalers and Gilbert cell multiplier phase detector with programmable charge pump output. The DUALTX output can be used in DUAL
