SA9024, 900 MHz transmit modulator and 1.3 GHz fractional-N synthesizer

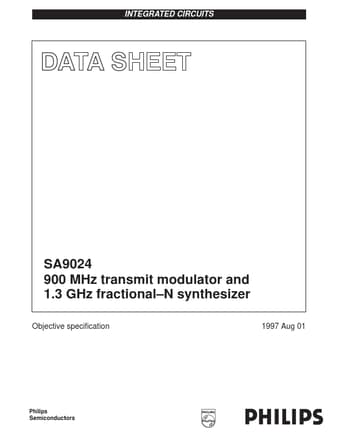

INTEGRATED CIRCUITS SA9024 900 MHz transmit modulator and 1.3 GHz fractional *N synthesizer Objective specification 1997 Aug 01 Philips Semic.
This specification defines the requirements for a transmitter modulator and fractional. N synthesizer IC to be used in cellular telephones whic.

datasheet Preview Page 1 from Datasheet4u.com

SA9024_PhilipsSemiconductors.pdf

SA9024 Datasheet Preview — Preview of SA9024 PDF

Datasheet Details

Part number:

SA9024

Manufacturer:

Philips

File Size:

151.91 KB

Description:

900 MHz transmit modulator and 1.3 GHz fractional-N synthesizer

Features

* Low current from 3.75V supply
* Low phase noise
* Main loop with internal charge pump and fractional compensation
* 3
* line serial interface bus
* Power down for the synthesizers

Applications

* 48 47 46 45 44 43 42 1 2 41 40 39 38 37 XTAL2 TXEN DATA CLOCK LOCK STROBE GND V CC I I Q Q PHP V CC RXLO1 3 RXLO2 4 GND V CC 5 6 SA9024 31 30 29 28 27 26 25
* Cellular phones
* Portable battery

SA9024 Distributors
