SAA1300 Datasheet - Philips

SAA1300 Tuner switching circuit

INTEGRATED CIRCUITS DATA SHEET SAA1300 Tuner switching circuit Product speciļ¬cation File under Integrated Circuits, IC12 June 1987 Philips Semiconductors Product speciļ¬cation Tuner switching circuit SAA1300 The SAA1300 is for switching on and off the supply lines of various circuit parts via an I2C bus signal. Furthermore, it can be used to supply current for switching diodes in radio and television tuners. It contains 5 output stages, which are capable of supplying up to 85 mA in the ON .

SAA1300_PhilipsSemiconductors.pdf

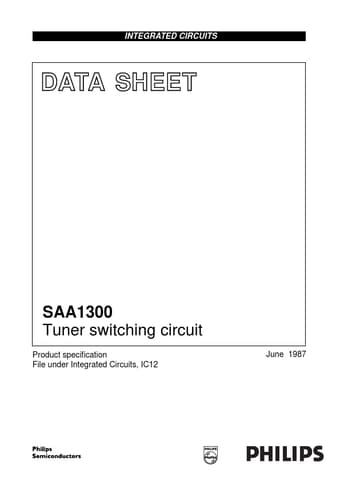

Preview of SAA1300 PDF
SAA1300 Datasheet Preview Page 2 SAA1300 Datasheet Preview Page 3

Datasheet Details

Part number:

SAA1300

Manufacturer:

Philips

File Size:

43.62 KB

Description:

Tuner switching circuit.
