SAA1310 - Control interface for VHS video recorders

Philips

📥 Download Datasheet

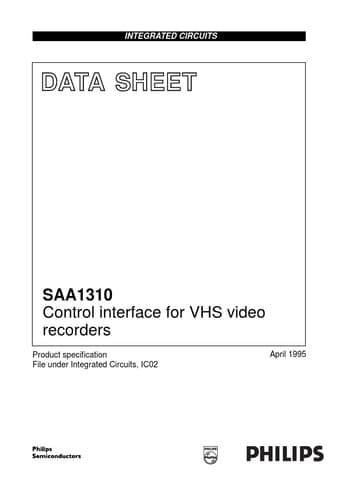

SAA1310 Datasheet Preview — Preview of SAA1310 PDF

Datasheet Details

Part number	SAA1310
Manufacturer	Philips
File Size	106.57 KB
Description	Control interface for VHS video recorders
Datasheet	SAA1310_PhilipsSemiconductors.pdf

SAA1310 Product details

Description

SAA1310 The SAA1310 provides an interface between the tape control head in the VHS deck-electronics.The circuit also includes an interface between sensors in the deck mechanics and the microprocessor.CODE SOT102 (1) SOT163A (2) April 1995 2 Philips Semiconductors Product speciﬁcation Control interface for VHS video recorders SAA1310 handbook, full pagewidth write current WRITE AMPLIFIER 10 (11) write/read input 16 (18) capstan reverse input 18 (20) control head data output con

Features

Full support of VISS and VASS mode (VHS Index/Address Search System).
Read, write and overwrite of Tape Control/head signal (CTL).
Power-ON and power-failure indicator.
4 general purpose comparators for interface between sensors and microprocessor.
2 comparators have a 100 mA output driver.
PAL and NTSC compatible.
