SAA2022

Tape formatting and error correction for the DCC system

SAA2022 Features

* Integrated error correction encoder/decoder function with Digital Compact Cassette (DCC) optimized algorithms

* Control of capstan servo during recording and after recording by microcontroller

* Frequency and phase regulation of capstan servo during playback

* Choic

SAA2022 General Description

Performing the tape formatting and error correction functions for DCC applications, the SAA2022 can be used in conjunction with the PASC (SAA2002/SAA2012), tape equalization (SAA2032), read amplifier (TDA1317 or TDA1318) and write amplifier (TDA1316 or TDA1319) circuits to implement a full signal pr.

SAA2022 Datasheet (208.33 KB)

Preview of SAA2022 PDF

Datasheet Details

Part number:

SAA2022

Manufacturer:

Philips

File Size:

208.33 KB

Description:

Tape formatting and error correction for the dcc system.

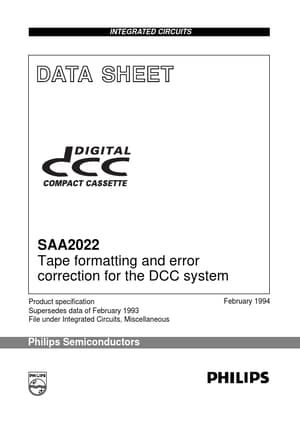

INTEGRATED CIRCUITS DATA SHEET SAA2022 Tape formatting and error correction for the DCC system Product specification Supersedes data of February 1993.
