SAA2023

Drive processor for DCC systems

SAA2023 Features

* Operating supply voltage: 4.5 to 5.5 V

* Low power dissipation: 260 mW at 5.0 V

* Single chip digital equalizer, tape formatting and error correction

* 8-bit flash analog-to-digital converter (ADC) for low symbol error rate

* Two switchable Infinite Impulse-

SAA2023 General Description

The SAA2023 performs the drive processor function in the DCC system. This function is built up of digital equalizer, error correction and tape formatting functions. The digital equalizer is intended for use with DCC read amplifiers TDA1318 or TDA1380. The tape formatting and error correction circuit.

SAA2023 Datasheet (274.37 KB)

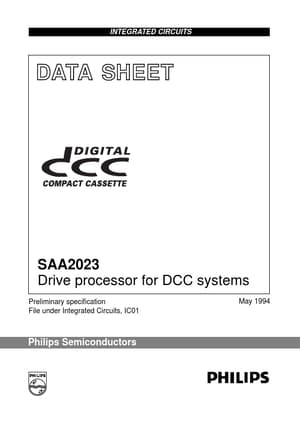

Preview of SAA2023 PDF

Datasheet Details

Part number:

SAA2023

Manufacturer:

Philips

File Size:

274.37 KB

Description:

Drive processor for dcc systems.
INTEGRATED CIRCUITS DATA SHEET SAA2023 Drive processor for DCC systems Preliminary specification File under Integrated Circuits, IC01 May 1994 Phili.
