SAA4960 - Integrated PAL comb filter

SAA4960 Description

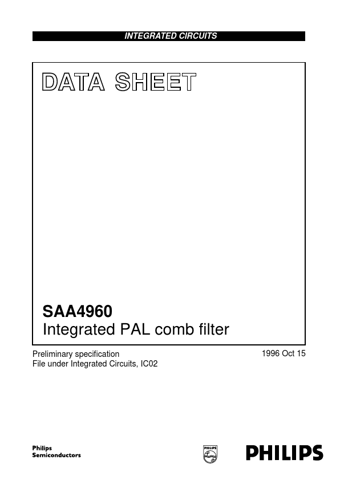

INTEGRATED CIRCUITS DATA SHEET SAA4960 Integrated PAL comb filter Preliminary speciļ¬cation File under Integrated Circuits, IC02 1996 Oct 15 Philips.
SAA4960 The SAA4960 is an adaptive alignment-free one chip comb filter compatible with PAL systems and provides high performance in Y/C separation.

SAA4960 Features

* One chip adaptive PAL comb filter
* Time discrete but continuous amplitude signal processing with analog interfaces
* Internal delay lines, filters, clock processing and signal switches
* Alignment-free
* No hanging dots or residual cross colour on vertical

SAA4960 Applications

* are supported where the operation mode (COMB or BYPASS) is controlled by the DC-level of the FSC input signal at pin 1. For those applications the BYP input can be externally connected to FSC (pin 1). Depending on SSYN (pin 6) the function of BYP can be adapted to a certain application with respect
