TD1316AF - (TD1300A(L)F) Tuner Modules

Product Overview

Philips

Datasheet Details

Part number	TD1316AF
Manufacturer	Philips
File Size	909.15 KB
Description	(TD1300A(L)F) Tuner Modules
Datasheet	TD1316AF Datasheet
Note	This datasheet PDF includes multiple part numbers: TD1316AF, TD1316ALF. Please refer to the document for exact specifications by model.

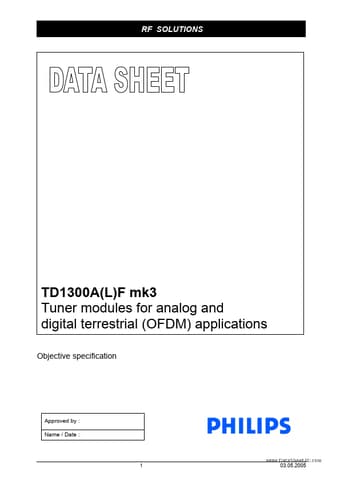

Additional preview pages of the TD1316AF datasheet.

Product details

Description

TD1300A(L)F-3 TD1300ALF-3 belong to the 3rd generation of terrestrial tuners designed to cope with digital COFDM and analog transmission standards.From function point-of-view these tuners can be divided into two high-frequency sections, a RFloopthrough and a single conversion tuner part.In the loopthrough section broadband low-noise amplifiers are used.The loopthrough frequency response covers the entire frequency range from VHF to UHF.The RF-downstream section is equipped with a state-of-

Features

Highly integrated single conversion tuner with active loopthrough Versions for different frequency ranges available +5V supply voltage only; no external tuning voltage required DC.
power output through RF-input connector (e. g. indoor antenna supply) Superior low noise and high sensitivity performance Tuners are suitable for analog and digital.
