UAA1300 - Voltage regulator

Datasheet Summary

Description

The UAA1300 is a bipolar IC voltage regulator especially designed for use within an automotive environment and also suitable to provide enhanced facilities within many microcontroller applications.

Features

  • Driving circuit for external PNP power transistor with adjustable output voltage via sense path, short-circuit protected.
  • Additional 5 Vl50 rnA output for RAM buffering, short-circuit protected.
  • Operating voltage range: 5.7 V to 24V.
  • Reset with adjustable trigger pulse length activated by output voltage.

📥 Download Datasheet

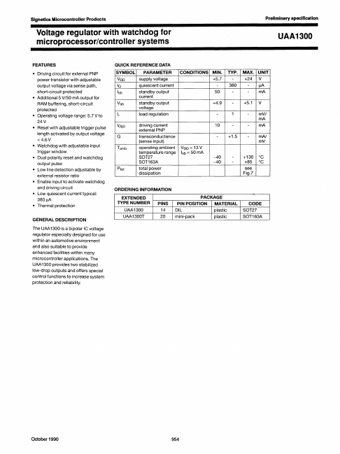

Datasheet preview – UAA1300

Datasheet Details

Part number UAA1300
Manufacturer Philips
File Size 496.56 KB
Description Voltage regulator
Datasheet download datasheet UAA1300 Datasheet
