BB809

VHF variable capacitance diode

Philipss

BB809 Features

* High linearity

* Matched to 3%

* Hermetically sealed leaded glass SOD68 (DO-34) package

* C28: 4.7 pF; ratio: 9

* Low series resistance. Cathode side indicated by a yellow band on a black body. k handbook, halfpage a BB809 MAM159 APPLICATIONS

* El

BB809 General Description

The BB809 is a variable capacitance diode, fabricated in planar technology, and encapsulated in the hermetically sealed leaded glass SOD68 (DO-34) package. ELECTRICAL CHARACTERISTICS Tj = 25 °C; unless otherwise speciﬁed. SYMBOL IR rs Cd PARAMETER reverse current diode series resistance diode capaci.

BB809 Datasheet (41.48 KB)

BB809 Datasheet Preview — Preview of BB809 PDF

Datasheet Details

Part number:

BB809

Manufacturer:

Philipss

File Size:

41.48 KB

Description:

Vhf variable capacitance diode.

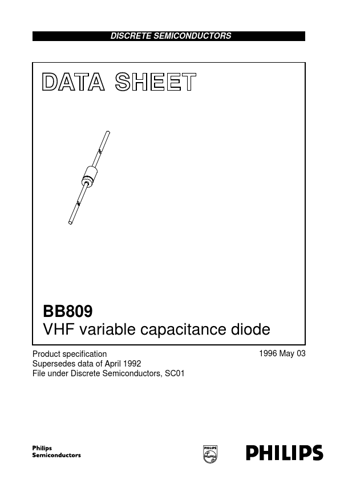

DISCRETE SEMICONDUCTORS DATA SHEET alfpage M3D050 BB809 VHF variable capacitance diode Product speciﬁcation Supersedes data of April 1992 File unde.
