BB811 Datasheet - Siemens Group

BB811 Silicon Variable Capacitance Diode

BB 811 Silicon Variable Capacitance Diode q BB 811 Frequency range up to 2 GHz; special design for use in TV-sat indoor units Type BB 811 Marking white T Ordering Code (tape and reel) Q62702-B478 Pin Configuration Package1) SOD-123 Maximum Ratings Parameter Reverse voltage Forward current, TA ≤ 60 ˚C Operating temperature range Storage temperature range Thermal Resistance Junction - ambient Rth JA ≤ Symbol VR IF Top Tstg Values 30 20 55 … + 150 Unit V mA 55 … + 1.

BB811_SiemensSemiconductorGroup.pdf

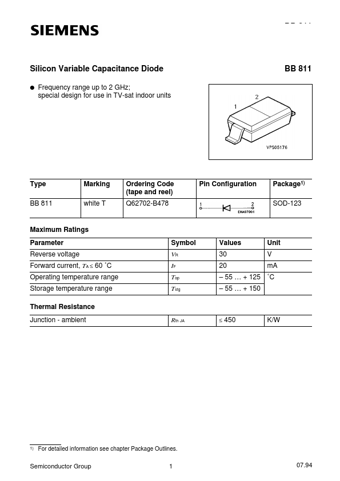

Preview of BB811 PDF
BB811 Datasheet Preview Page 2

Datasheet Details

Part number:

BB811

Manufacturer:

Siemens Group

File Size:

26.30 KB

Description:

Silicon variable capacitance diode.
