BC140-10

NPN medium power transistor

BC140-10 Features

* High current (max. 1 A)

* Low voltage (max. 60 V). APPLICATIONS

* General purpose switching and amplification. DESCRIPTION NPN medium power transistor in a TO-39 metal package. PNP complements: BC160 and BC161. 3 BC140; BC141 PINNING PIN 1 2 3 emitter base collector, conne

BC140-10 General Description

NPN medium power transistor in a TO-39 metal package. PNP complements: BC160 and BC161. 3 BC140; BC141 PINNING PIN 1 2 3 emitter base collector, connected to case DESCRIPTION 1 handbook, halfpage 2 2 3 MAM317 1 Fig.1 Simplified outline (TO-39) and symbol. QUICK REFERENCE DATA SYMBOL VCBO PARA.

BC140-10 Datasheet (50.50 KB)

Preview of BC140-10 PDF

Datasheet Details

Part number:

BC140-10

Manufacturer:

Philipss

File Size:

50.50 KB

Description:

Npn medium power transistor.

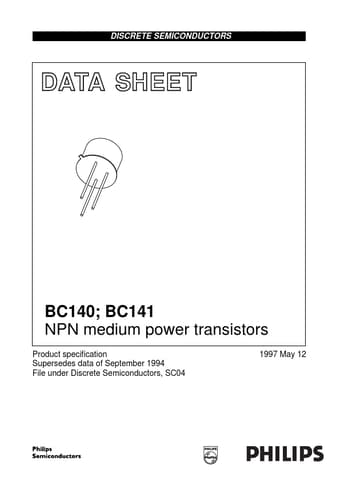

DISCRETE SEMICONDUCTORS DATA SHEET M3D110 BC140; BC141 NPN medium power transistors Product specification Supersedes data of September 1994 File und.
