NE56631-19

Active-LOW system reset

NE56631-19 Features

* High precision threshold detection voltage:

* Super low operating supply current: ICCH=1.5 µA typ.; ICCL=1.0 µA typ. APPLICATIONS VS ±3%

* Hysteresis voltage: 50 mV typ.

* Internal Power-On-Reset Delay time: 20 µs typ.

* Detection threshold voltage: 1.9 V

NE56631-19 General Description

The NE56631-XX is a family of Active-LOW, power-on resets that offers precision threshold voltage detection within ±3% and super low operating supply current of typically 1.5 µA. Several detection threshold voltages are available at 1.9 V, 2.0 V, 2.7 V, 2.8 V, 2.9 V, 3.0 V, 3.1 V, 4.2 V, 4.3 V, 4.4 .

NE56631-19 Datasheet (107.84 KB)

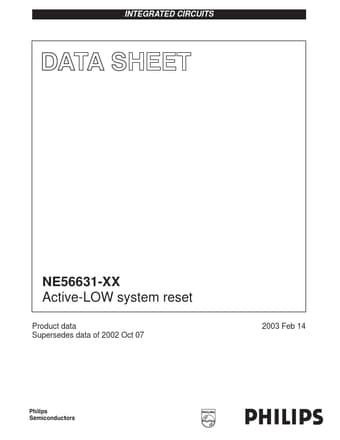

Preview of NE56631-19 PDF

Datasheet Details

Part number:

NE56631-19

Manufacturer:

Philipss

File Size:

107.84 KB

Description:

Active-low system reset.
INTEGRATED CIRCUITS NE56631-XX Active-LOW system reset Product data Supersedes data of 2002 Oct 07 2003 Feb 14 Philips Semiconductors Philips Semic.
