232273461002 Datasheet - Phycomp

RESISTOR SMD

232273461002 Features

* Low assembly costs

* High component and equipment reliability

* Excellent performance at high frequency, especially the RC32.

* TC 50 in thick film technology

* Complete precision SMD family. www.DataSheet4U.com RC02/12/22/32 1% The resistive layer is cover

232273461002 General Description

The resistors are constructed on a high grade ceramic body (aluminium oxide). Internal metal electrodes are added at each end and connected by a resistive paste which is applied to the top surface of the substrate. The composition of the paste is adjusted to give the approximate resistance required .

232273461002 Datasheet (142.41 KB)

232273461002 Datasheet Preview — Preview of 232273461002 PDF

Datasheet Details

Part number:

232273461002

Manufacturer:

Phycomp

File Size:

142.41 KB

Description:

Resistor smd.

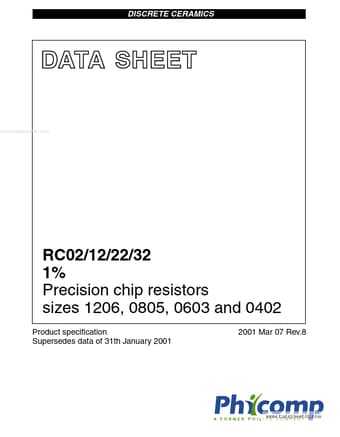

DISCRETE CERAMICS DATA SHEET www.DataSheet4U.com RC02/12/22/32 1% Precision chip resistors sizes 1206, 0805, 0603 and 0402 Product specification Sup.
