PC113 Subminiature 12 & 20 Amp General Purpose Relay

PC113 Description

Subminiature 12 & 20 Amp General Purpose Relay E86876 PC113 UL / CUL Ratings Contact Form Rated Load General Purpose, 6K cycles, 40°C General Purpo.

PC113 Features

* 1 and 2 Pole Contact Forms
* 12 & 20 Amp Switching Capacity
* AC & DC Coils Available
* Available as Plug-In or PC Pins
* Available with Gold Plated Contacts
* Available with Top Mounting Flange
* Available Compatible with SC113 Series Socket

📥 Download Datasheet

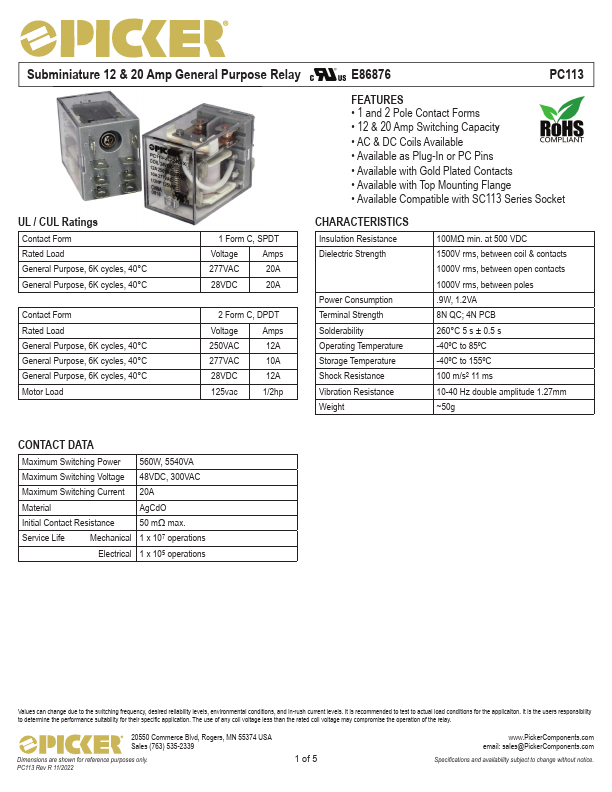

Preview of PC113 PDF

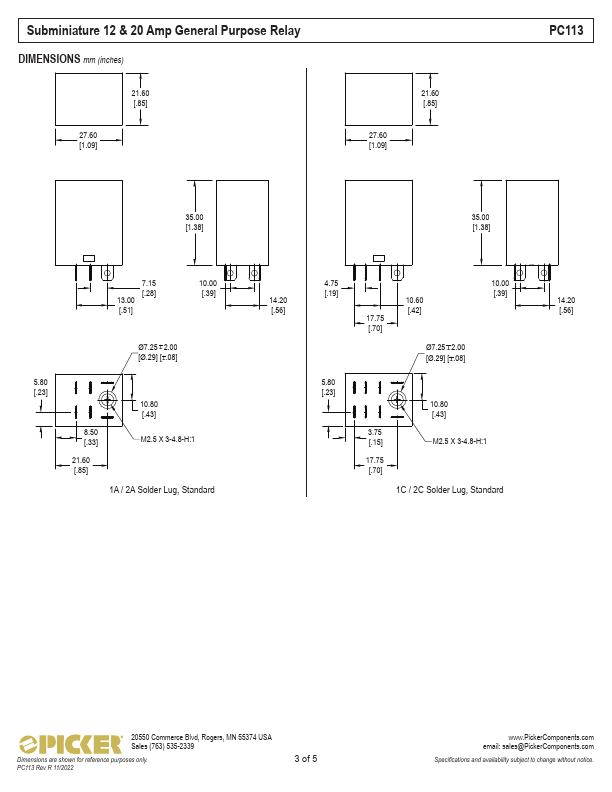

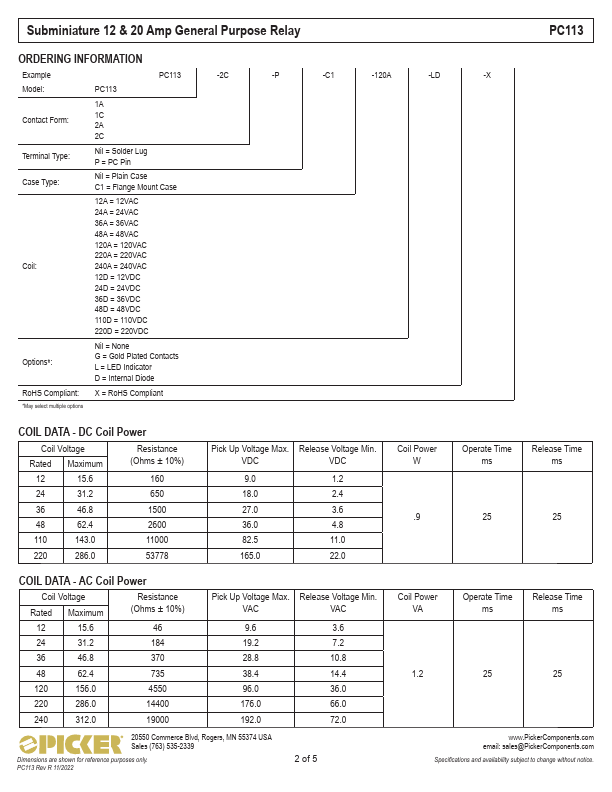

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PC113
Manufacturer
Picker Components
File Size
302.89 KB
Datasheet
PC113_PickerComponents.pdf
Description
Subminiature 12 & 20 Amp General Purpose Relay
