PC10 - PCB Relay

Datasheet Summary

Features

  • Energy Saving Latching Operation.
  • 50 Amp Switching Capacity.
  • 5,000 Watt Lamp Load.
  • 5 HP Motor Load.
  • Max Inrush Current 500 Amp / 2 msec.
  • 4kV Dielectric Between Contacts and Coil.
  • Single or Dual Coil Latching.
  • Manual Topside Switch.
  • 39.0 x 25.0 x 15.0mm Package Dimensions, Narrowest in the Industry.
  • Lead Free and RoHS Compliant UL/CSA Ratings at 25C (Pending) PC10 Load Type Resistive 6,000 Cycles Incandescent Lamp 3,000 Cycles Incandescent Lamp.

📥 Download Datasheet

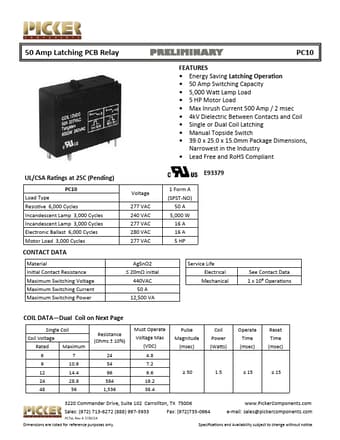

Datasheet preview – PC10
