Description

The Samsung KMM366S1623CT is a 16M bit x 64 Synchronous Dynamic RAM high density memory module.

The Samsung KMM366S1623CT consists of sixteen CMOS 8M x 8 bit with 4banks Synchronous DRAMs in TSOP-II 400mil package and a 2K EEPROM in 8-pin TSSOP package on a 168-pin glass-epoxy substrate.

Features

d tCCD = 2CLKs tRC ≥ tRC(min) CKE ≤ 0.2V 3 2 920 760 mA 96 32 32 320 160 760 760 2,000 16 760 mA 720 mA mA 2 1 mA mA mA Active standby current in non power-down mode (One bank active) Operating current (Burst mode) Ref.

Datasheet Details

Part number	PC100
Manufacturer	Samsung semiconductor
File Size	151.64 KB
Description	PC100 SDRAM MODULE Preliminary
Datasheet	PC100 Datasheet
Additional preview pages of the PC100 datasheet.

📁 Similar Datasheet

PC100-222-620 - 3.3V 2M x 64/72-Bit 1 BANK SDRAM Module 3.3V 4M x 64/72-Bit 2 BANK SDRAM Module (Siemens Semiconductor Group)

PC100-222-620 - 3.3 V 8M x 64/72-Bit 1 Bank SDRAM Module 3.3 V 16M x 64/72-Bit 2 Bank SDRAM Module (Siemens Semiconductor Group)

PC100-222-620 - 3.3 V 16M x 64/72-Bit SDRAM Modules 3.3 V 32M x 64/72-Bit SDRAM Modules 3.3 V 64M x 64/72-Bit SDRAM Modules (Siemens Semiconductor Group)

PC100-222-620 - 3.3V 4M x 64/72-Bit 1 BANK SDRAM Module 3.3V 8M x 64/72-Bit 2 BANK SDRAM Module (Siemens Semiconductor Group)

PC100-323-620 - 3.3V 2M x 64/72-Bit 1 BANK SDRAM Module 3.3V 4M x 64/72-Bit 2 BANK SDRAM Module (Siemens Semiconductor Group)

PC100-323-620 - 3.3 V 8M x 64/72-Bit 1 Bank SDRAM Module 3.3 V 16M x 64/72-Bit 2 Bank SDRAM Module (Siemens Semiconductor Group)

PC100-323-620 - 3.3 V 16M x 64/72-Bit SDRAM Modules 3.3 V 32M x 64/72-Bit SDRAM Modules 3.3 V 64M x 64/72-Bit SDRAM Modules (Siemens Semiconductor Group)

PC100-323-620 - 3.3V 4M x 64/72-Bit 1 BANK SDRAM Module 3.3V 8M x 64/72-Bit 2 BANK SDRAM Module (Siemens Semiconductor Group)

PC10012 - DIODE MODULE (Nihon Inter Electronics)

PC10016 - DIODE MODULE (Nihon Inter Electronics)

Full PDF Text Transcription

Click to expand full text

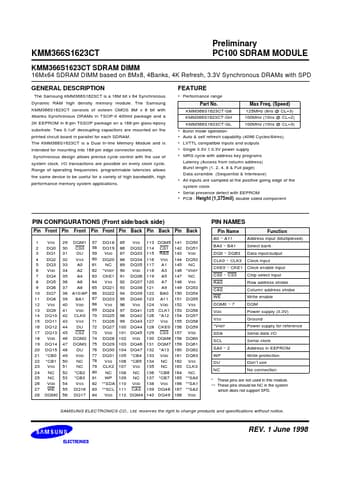

KMM366S1623CT KMM366S1623CT SDRAM DIMM Preliminary PC100 SDRAM MODULE 16Mx64 SDRAM DIMM based on 8Mx8, 4Banks, 4K Refresh, 3.3V Synchronous DRAMs with SPD GENERAL DESCRIPTION The Samsung KMM366S1623CT is a 16M bit x 64 Synchronous Dynamic RAM high density memory module. The Samsung KMM366S1623CT consists of sixteen CMOS 8M x 8 bit with 4banks Synchronous DRAMs in TSOP-II 400mil package and a 2K EEPROM in 8-pin TSSOP package on a 168-pin glass-epoxy substrate. Two 0.1uF decoupling capacitors are mounted on the printed circuit board in parallel for each SDRAM. The KMM366S1623CT is a Dual In-line Memory Module and is intended for mounting into 168-pin edge connector sockets. Synchronous design allows precise cycle control with the use of system clock.
