PC1004 - Power Chip Inductors

Datasheet Summary

Features

  • Unshielded SMD Power Inductor.
  • Available in magnetically shielded.
  • Suitable for large currents.
  • Ideal for DC-DC converter.

📥 Download Datasheet

Datasheet preview – PC1004

Datasheet Details

Part number PC1004
Manufacturer Allied Components International
File Size 332.14 KB
Description Power Chip Inductors
Datasheet download datasheet PC1004 Datasheet
Additional preview pages of the PC1004 datasheet.

📁 Similar Datasheet

  • PC100 - PC100 SDRAM MODULE Preliminary (Samsung semiconductor)
  • PC100-222-620 - 3.3V 2M x 64/72-Bit 1 BANK SDRAM Module 3.3V 4M x 64/72-Bit 2 BANK SDRAM Module (Siemens Semiconductor Group)
  • PC100-222-620 - 3.3 V 8M x 64/72-Bit 1 Bank SDRAM Module 3.3 V 16M x 64/72-Bit 2 Bank SDRAM Module (Siemens Semiconductor Group)
  • PC100-222-620 - 3.3 V 16M x 64/72-Bit SDRAM Modules 3.3 V 32M x 64/72-Bit SDRAM Modules 3.3 V 64M x 64/72-Bit SDRAM Modules (Siemens Semiconductor Group)
  • PC100-222-620 - 3.3V 4M x 64/72-Bit 1 BANK SDRAM Module 3.3V 8M x 64/72-Bit 2 BANK SDRAM Module (Siemens Semiconductor Group)
  • PC100-323-620 - 3.3V 2M x 64/72-Bit 1 BANK SDRAM Module 3.3V 4M x 64/72-Bit 2 BANK SDRAM Module (Siemens Semiconductor Group)
  • PC100-323-620 - 3.3 V 8M x 64/72-Bit 1 Bank SDRAM Module 3.3 V 16M x 64/72-Bit 2 Bank SDRAM Module (Siemens Semiconductor Group)
  • PC100-323-620 - 3.3 V 16M x 64/72-Bit SDRAM Modules 3.3 V 32M x 64/72-Bit SDRAM Modules 3.3 V 64M x 64/72-Bit SDRAM Modules (Siemens Semiconductor Group)
  • PC100-323-620 - 3.3V 4M x 64/72-Bit 1 BANK SDRAM Module 3.3V 8M x 64/72-Bit 2 BANK SDRAM Module (Siemens Semiconductor Group)
  • PC10012 - DIODE MODULE (Nihon Inter Electronics)
Other Datasheets by Allied Components International
  • PC1005 - Power Chip Inductors
  • PC1006 - Power Chip Inductors
  • PC1307 - Power Chip Inductors

Full PDF Text Transcription

Click to expand full text

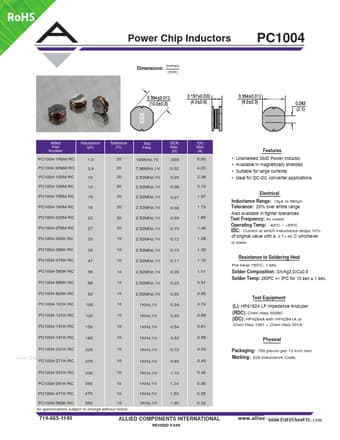

RoHS Power Chip Inductors Dimensions: Inches (mm) PC1004 Allied Part Number Inductance (µh) Tolerance (%) Test Freq. DCR Max. (Ω ) IDC Max. (A) Features • Unshielded SMD Power Inductor • Available in magnetically shielded • Suitable for large currents • Ideal for DC-DC converter applications PC1004-1R0M-RC PC1004-3R8M-RC PC1004-100M-RC PC1004-120M-RC PC1004-150M-RC PC1004-180M-RC PC1004-220M-RC PC1004-270M-RC PC1004-330K-RC PC1004-390K-RC PC1004-470K-RC PC1004-560K-RC PC1004-680K-RC PC1004-820K-RC PC1004-101K-RC PC1004-121K-RC PC1004-151K-RC PC1004-181K-RC PC1004-221K-RC 1.0 3.8 10 12 15 18 22 27 33 39 47 56 68 82 100 120 150 180 220 270 330 390 470 560 20 20 20 20 20 20 20 20 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 100KHz,1V 7.96MHz,1V 2.52MHz,1V 2.52MHz,1V 2.
