PC1006 - Power Chip Inductors

Datasheet Summary

Features

  • Unshielded SMD Power Inductor.
  • High Saturation Current.
  • Suitable for large currents.
  • Ideal for DC-DC converter.

📥 Download Datasheet

Datasheet preview – PC1006

Datasheet Details

Part number PC1006
Manufacturer Allied Components International
File Size 272.47 KB
Description Power Chip Inductors
Datasheet download datasheet PC1006 Datasheet
Additional preview pages of the PC1006 datasheet.

📁 Similar Datasheet

  • PC100 - PC100 SDRAM MODULE Preliminary (Samsung semiconductor)
  • PC100-222-620 - 3.3V 2M x 64/72-Bit 1 BANK SDRAM Module 3.3V 4M x 64/72-Bit 2 BANK SDRAM Module (Siemens Semiconductor Group)
  • PC100-222-620 - 3.3 V 8M x 64/72-Bit 1 Bank SDRAM Module 3.3 V 16M x 64/72-Bit 2 Bank SDRAM Module (Siemens Semiconductor Group)
  • PC100-222-620 - 3.3 V 16M x 64/72-Bit SDRAM Modules 3.3 V 32M x 64/72-Bit SDRAM Modules 3.3 V 64M x 64/72-Bit SDRAM Modules (Siemens Semiconductor Group)
  • PC100-222-620 - 3.3V 4M x 64/72-Bit 1 BANK SDRAM Module 3.3V 8M x 64/72-Bit 2 BANK SDRAM Module (Siemens Semiconductor Group)
  • PC100-323-620 - 3.3V 2M x 64/72-Bit 1 BANK SDRAM Module 3.3V 4M x 64/72-Bit 2 BANK SDRAM Module (Siemens Semiconductor Group)
  • PC100-323-620 - 3.3 V 8M x 64/72-Bit 1 Bank SDRAM Module 3.3 V 16M x 64/72-Bit 2 Bank SDRAM Module (Siemens Semiconductor Group)
  • PC100-323-620 - 3.3 V 16M x 64/72-Bit SDRAM Modules 3.3 V 32M x 64/72-Bit SDRAM Modules 3.3 V 64M x 64/72-Bit SDRAM Modules (Siemens Semiconductor Group)
  • PC100-323-620 - 3.3V 4M x 64/72-Bit 1 BANK SDRAM Module 3.3V 8M x 64/72-Bit 2 BANK SDRAM Module (Siemens Semiconductor Group)
  • PC10012 - DIODE MODULE (Nihon Inter Electronics)
Other Datasheets by Allied Components International
  • PC1004 - Power Chip Inductors
  • PC1005 - Power Chip Inductors
  • PC1307 - Power Chip Inductors

Full PDF Text Transcription

Click to expand full text

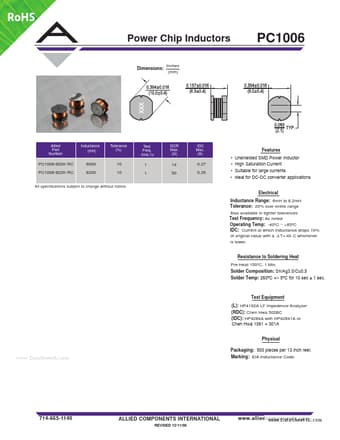

RoHS Power Chip Inductors Dimensions: Inches (mm) PC1006 Allied Part Number Inductance (mH) Tolerance (%) Test Freq. KHz,1v DCR Max. (Ω ) IDC Max. (A) Features • Unshielded SMD Power Inductor • High Saturation Current • Suitable for large currents • Ideal for DC-DC converter applications PC1006-602K-RC PC1006-822K-RC 6000 8200 10 10 1 1 14 50 0.27 0.20 All specifications subject to change without notice. Electrical Inductance Range: 6mH to 8.2mH Tolerance: 20% over entire range Also available in tighter tolerances Test Frequency: As noted Operating Temp: -40ºC ~ +85ºC IDC: Current at which Inductance drops 10% of original value with a ∆ T= 40ºC whichever is lower. Resistance to Soldering Heat Pre-Heat 150ºC, 1 Min. Solder Composition: Sn/Ag3.0/Cu0.
