PC303 - Microminiature Signal Relay

Datasheet Summary

Features

  • Microminiature design .200 inch DIL spacing 7.5 millimeter width Meets FCC part 68 voltage surge Bifurcated contacts for high sensitivity Single coil latching available Sealed, immersion cleanable Now available Lead Free & RoHS Compliant File # E86876 UL/CSA.

📥 Download Datasheet

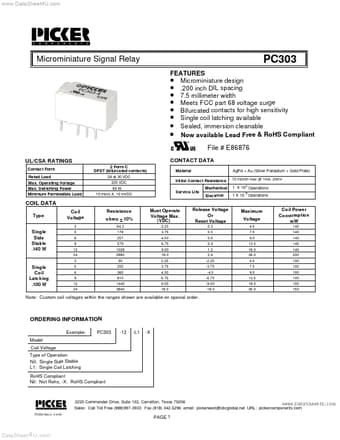

Datasheet preview – PC303

Datasheet Details

Part number PC303
Manufacturer Picker Components
File Size 215.90 KB
Description Microminiature Signal Relay
Datasheet download datasheet PC303 Datasheet
