PC303S - Microminiature Surface Mount Signal Relay

Datasheet Summary

Features

  • Microminiature design .200 inch DIL spacing 7.5 millimeter width Meets FCC part 68 voltage surge Bifurcated contacts for high sensitivity Single coil latching available Sealed, immersion cleanable File # E86876 UL/CSA.

📥 Download Datasheet

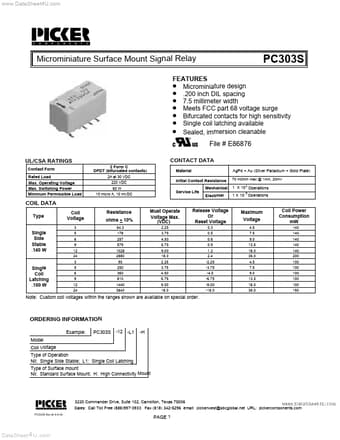

Datasheet preview – PC303S

Datasheet Details

Part number PC303S
Manufacturer Picker Components
File Size 266.12 KB
Description Microminiature Surface Mount Signal Relay
Datasheet download datasheet PC303S Datasheet
Additional preview pages of the PC303S datasheet.

📁 Similar Datasheet

  • PC3030K - 1/3.7 inch NTSC/PAL CMOS Image Sensor (Pixelplus)
  • PC3012 - (PC3012 / PC3016) DIODE MODULE 30A/1200 to1600V (Nihon Inter Electronics)
  • PC3016 - (PC3012 / PC3016) DIODE MODULE 30A/1200 to1600V (Nihon Inter Electronics)
  • PC302 - Microminiature 1 Amp Signal Relay (Picker)
  • PC308 - DIODE MODULE 30A/800V (Nihon Inter Electronics)
  • PC308 - Diode (Nihon Inter Electronics)
  • PC30F8 - FRD MODULE 30A/800V/trr:60nsec (Nihon Inter Electronics)
  • PC30H08V4 - White SMD LED (Lextar)
  • PC3-12-12 - Single/ Dual output DC-DC converter 1.5W ~ 25W (DENSEI-LAMBDA)
  • PC3-12-3.3 - Single/ Dual output DC-DC converter 1.5W ~ 25W (DENSEI-LAMBDA)
Other Datasheets by Picker Components
  • PC303 - Microminiature Signal Relay
  • PC302S - Microminiature Surface Mount Signal Relay
  • PC307 - Ultraminiature PCB Telecom Relay
  • PC312 - Subminiature PCB Telecom Relay
  • PC312B - Subminiature PCB Telecom Relay
  • PC333 - 12 Amp Subminature PCB Power Relay

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com Microminiature Surface Mount Signal Relay PC303S FEATURES Microminiature design .200 inch DIL spacing 7.5 millimeter width Meets FCC part 68 voltage surge Bifurcated contacts for high sensitivity Single coil latching available Sealed, immersion cleanable File # E86876 UL/CSA RATINGS Contact Form Rated Load Max. Operating Voltage Max. Switching Power Minimum Permissible Load 2 Form C DPDT (bifurcated contacts) 2A at 30 VDC 220 VDC 60 W 10 micro A, 10 mVDC CONTACT DATA Material Initial Contact Resistance Service Life Mechanical Electrical AgPd + Au (Silver Palladium + Gold Plate) 70 mOhm max @ 1mA, 20mV 1 X 10 Operations 1 X 10 8 Operations 5 COIL DATA Type Single Side Stable .140 W Coil Voltage 3 5 6 9 12 24 3 5 6 9 12 24 Resistance ohms + 10% 64.
