PC537 - Ultraminiature 30 Amp Automotive PCB-Mounted Relay

PC537 Description

Ultraminiature 30 Amp Automotive PCB-Mounted Relay PC537 .

PC537 Features

* CONTACT RATING 14 VDC @ 25°C
* Contact 1 Form A (SPST-NO) or 1 Form C (SPDT) Normally Open Normally Closed Rated Load (Resistive) 30 A 25 A Max. Switching Current Make 100 A
* Break 40 A Max. Switching Voltage 28 VDC 40 A for 2 min NA 20°C 30 A For 1 Hour NA Max. Carry C

📥 Download Datasheet

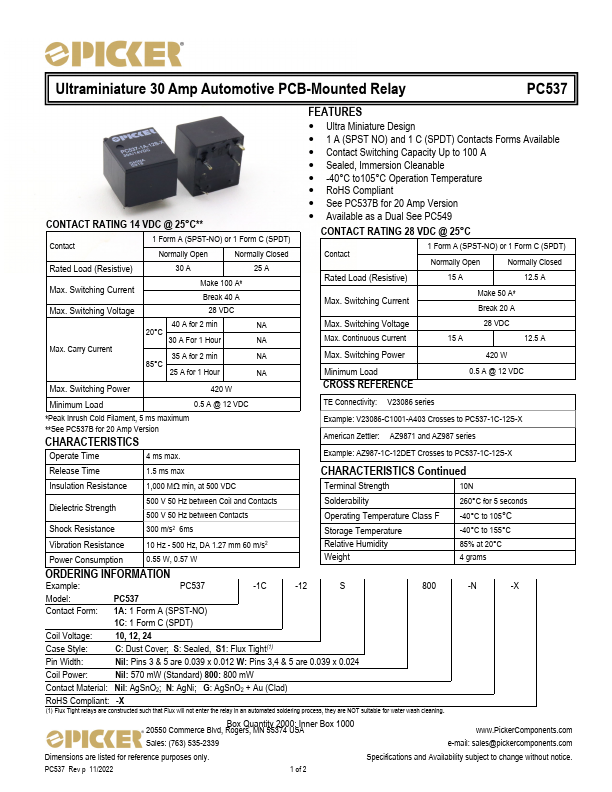

Preview of PC537 PDF

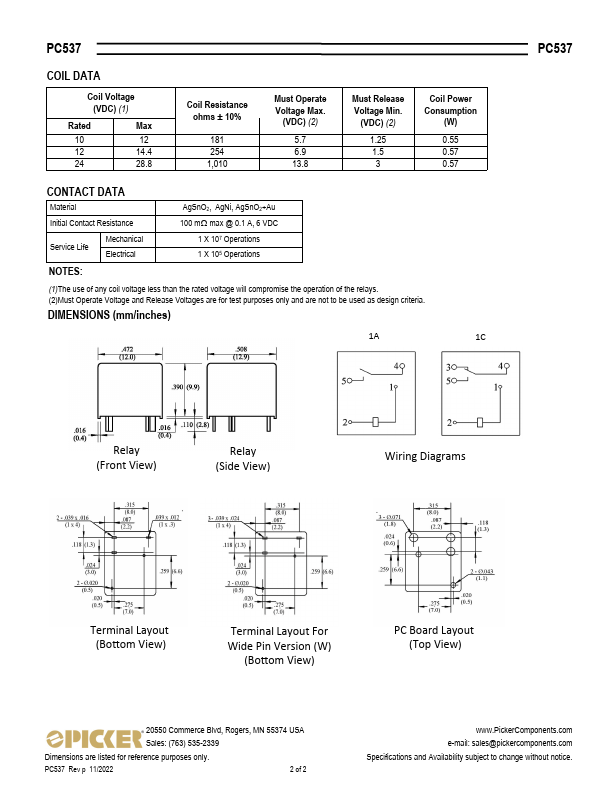

datasheet Preview Page 2

Datasheet Details

Part number
PC537
Manufacturer
Picker Components
File Size
482.25 KB
Datasheet
PC537_PickerComponents.pdf
Description
Ultraminiature 30 Amp Automotive PCB-Mounted Relay
