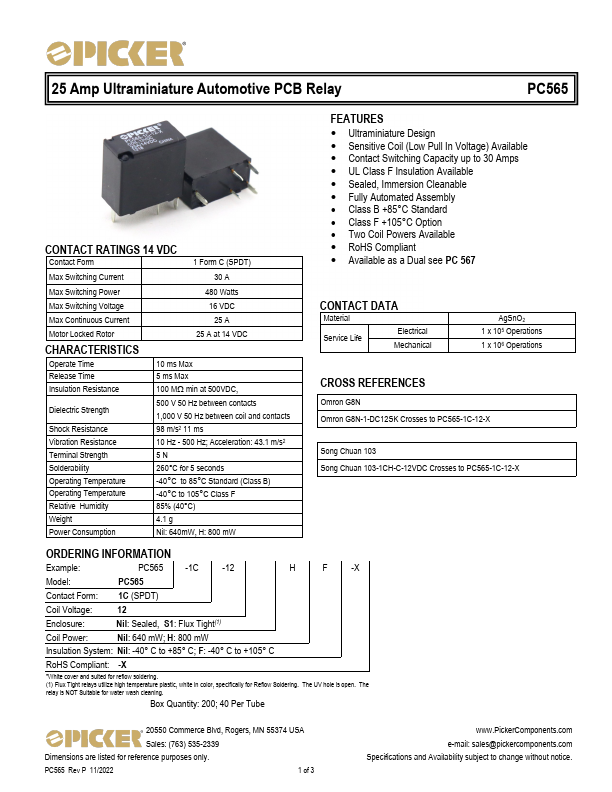

PC565 25 Amp Ultraminiature Automotive PCB Relay

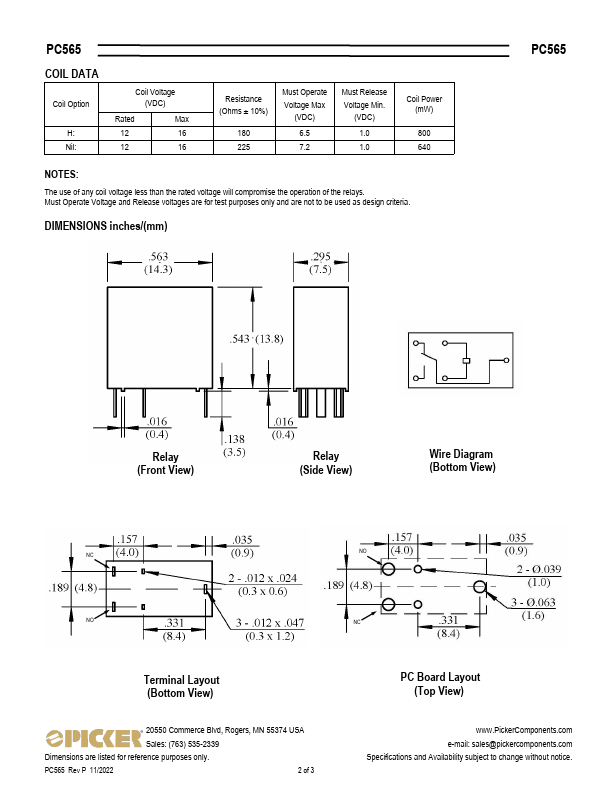

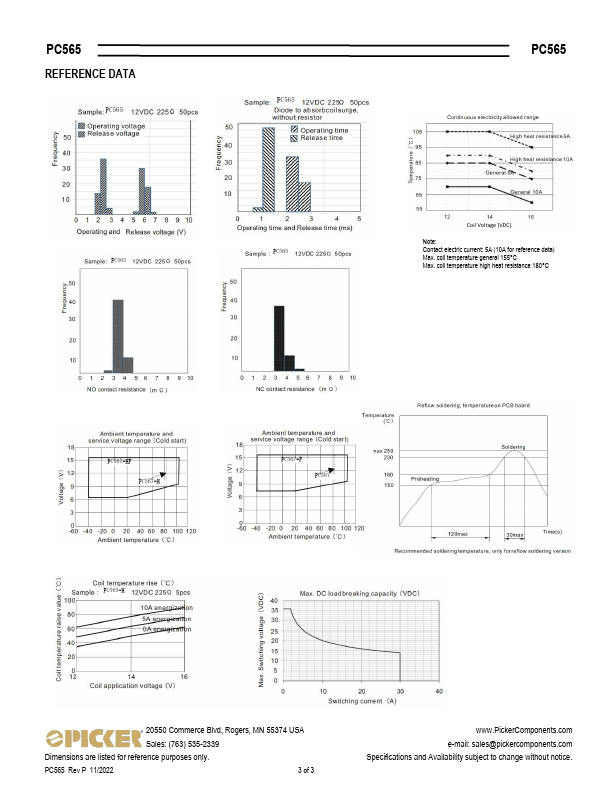

25 Amp Ultraminiature Automotive PCB Relay PC565 CONTACT RATINGS 14 VDC Contact Form 1 Form C (SPDT) Max Switching Current 30 A Max Switching Power 480 Watts Max Switching Voltage 16 VDC Max Continuous Current 25 A Motor Locked Rotor 25 A at 14 VDC CHARACTERISTICS Operate Time Release Time Insulation Resistance Dielectric Strength Shock Resistance Vibration Resistance Terminal Strength Solderability Operating Temperature Operating Temperature Relative Humidity Weight Power Consump.

PC565 Features

* Ultraminiature Design

* Sensitive Coil (Low Pull In Voltage) Available

* Contact Switching Capacity up to 30 Amps

* UL Class F Insulation Available

* Sealed, Immersion Cleanable

* Fully Automated Assembly

* Class B +85°C Standard

* Cl

PC565 Datasheet (917.17 KB)

PC565 Datasheet Preview — Preview of PC565 PDF

Datasheet Details

Part number:

PC565

Manufacturer:

Picker Components

File Size:

917.17 KB

Description:

25 amp ultraminiature automotive pcb relay.
