PC302 - Microminiature 1 Amp Signal Relay

Datasheet Summary

Features

  • Microminiature Design.
  • DIL Package for PC Board or Socket.
  • Low 5mm Profile.
  • Meets FCC Part 68 Voltage Surge.
  • Bifurcated Contacts for High Sensitivity PC302 UL / CUL Ratings Contact Form Rated Load Resistive, 6K cycles, 40°C Resistive, 6K cycles, 40°C 2 Form C, DPDT bifurcated contacts Voltage Amps 30VDC 1A 125VAC .5A.

📥 Download Datasheet

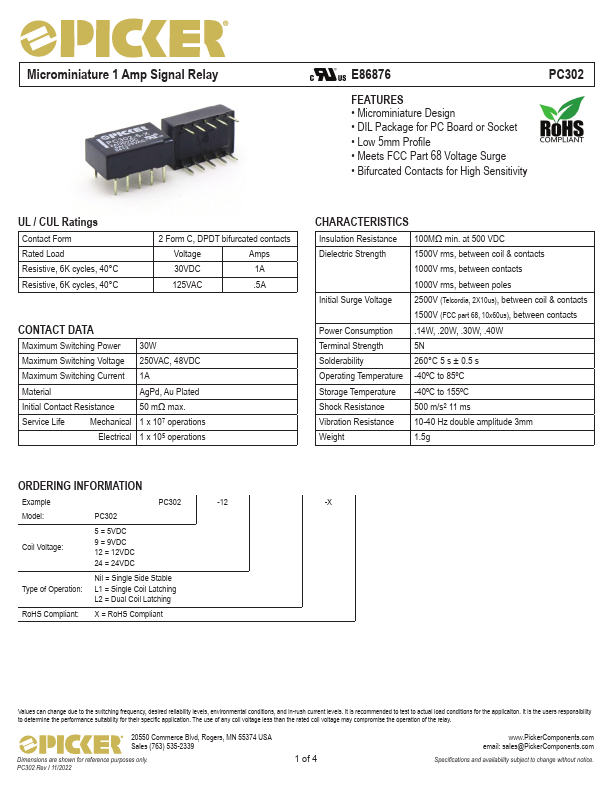

Datasheet preview – PC302

Datasheet Details

Part number PC302
Manufacturer Picker
File Size 200.95 KB
Description Microminiature 1 Amp Signal Relay
Datasheet download datasheet PC302 Datasheet

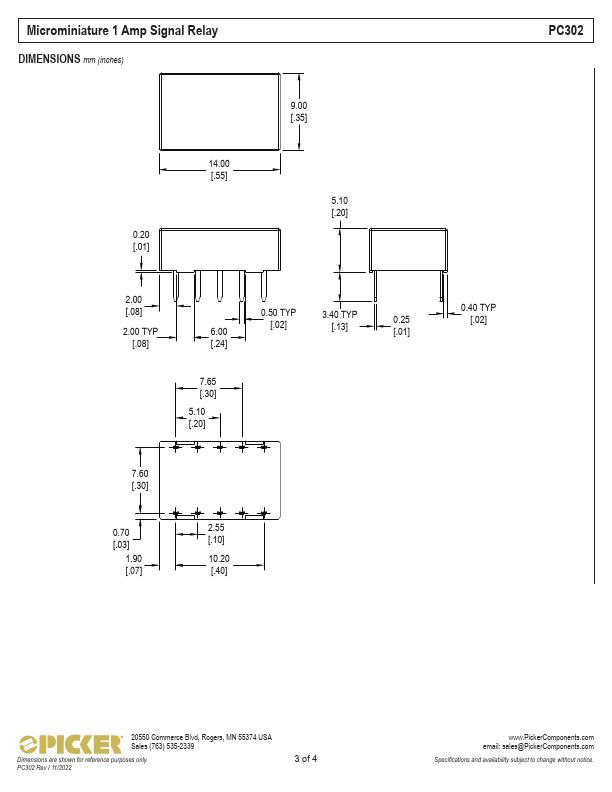

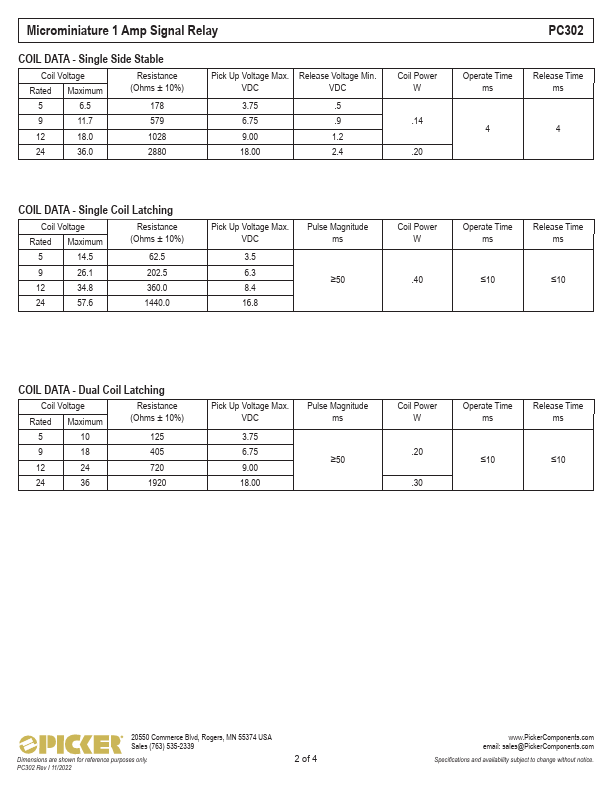

Additional preview pages of the PC302 datasheet.

📁 Similar Datasheet

  • PC302S - Microminiature Surface Mount Signal Relay (Picker Components)
  • PC3012 - (PC3012 / PC3016) DIODE MODULE 30A/1200 to1600V (Nihon Inter Electronics)
  • PC3016 - (PC3012 / PC3016) DIODE MODULE 30A/1200 to1600V (Nihon Inter Electronics)
  • PC303 - Microminiature Signal Relay (Picker Components)
  • PC3030K - 1/3.7 inch NTSC/PAL CMOS Image Sensor (Pixelplus)
  • PC303S - Microminiature Surface Mount Signal Relay (Picker Components)
  • PC307 - Ultraminiature PCB Telecom Relay (Picker Components)
  • PC308 - DIODE MODULE 30A/800V (Nihon Inter Electronics)
  • PC308 - Diode (Nihon Inter Electronics)
  • PC30F8 - FRD MODULE 30A/800V/trr:60nsec (Nihon Inter Electronics)
Other Datasheets by Picker

Full PDF Text Transcription

Click to expand full text
Microminiature 1 Amp Signal Relay E86876 FEATURES • Microminiature Design • DIL Package for PC Board or Socket • Low 5mm Profile • Meets FCC Part 68 Voltage Surge • Bifurcated Contacts for High Sensitivity PC302 UL / CUL Ratings Contact Form Rated Load Resistive, 6K cycles, 40°C Resistive, 6K cycles, 40°C 2 Form C, DPDT bifurcated contacts Voltage Amps 30VDC 1A 125VAC .5A CONTACT DATA Maximum Switching Power 30W Maximum Switching Voltage 250VAC, 48VDC Maximum Switching Current 1A Material AgPd, Au Plated Initial Contact Resistance 50 mΩ max. Service Life Mechanical 1 x 107 operations Electrical 1 x 105 operations CHARACTERISTICS Insulation Resistance 100MΩ min.
