PC7150 Datasheet, Relay, Picker

PC7150 Features

  • Relay
  • Popular Maxi ISO Automotive Relay Footprint
  • 1A and 1C Contact Forms Available
  • Contact Switching Capacity up to 450 Amps
  • 150 Amps Continuous Carry

PDF File Details

Part number:

PC7150

Manufacturer:

Picker

File Size:

638.14kb

Download:

📄 Datasheet

Description:

150/100 amp automotive plug-in / pcb maxi iso relay.

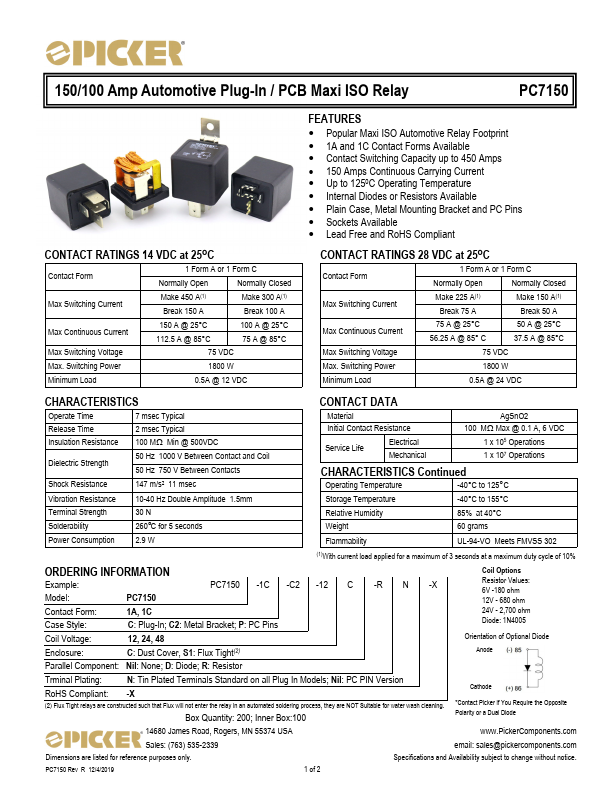

Datasheet Preview: PC7150 📥 Download PDF (638.14kb)

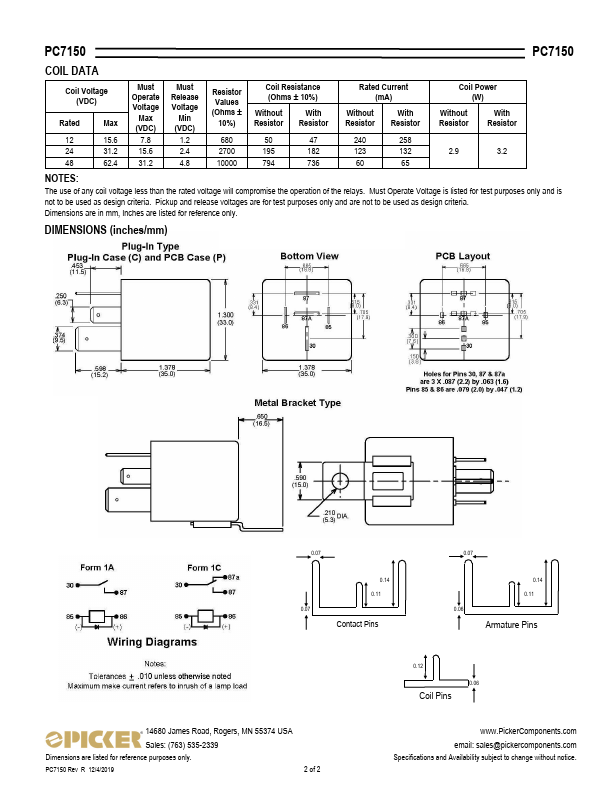

Page 2 of PC7150
