PC740 40 Amp Power Relay

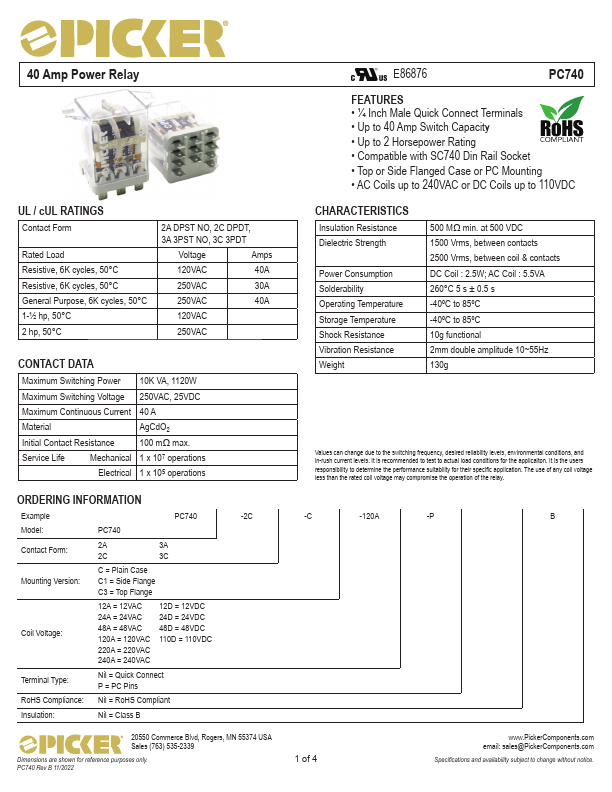

40 Amp Power Relay UL / cUL RATINGS Contact Form Rated Load Resistive, 6K cycles, 50°C Resistive, 6K cycles, 50°C General Purpose, 6K cycles, 50°C 1-½ hp, 50°C 2 hp, 50°C 2A DPST NO, 2C DPDT, 3A 3PST NO, 3C 3PDT Voltage Amps 120VAC 40A 250VAC 30A 250VAC 40A 120VAC 250VAC CONTACT DATA Maximum Switching Power 10K VA, 1120W Maximum Switching Voltage 250VAC, 25VDC Maximum Continuous Current 40 A Material Initial Contact Resistance AgCdO2 100 mΩ max. Service Life Mechanical 1 x 107.

PC740 Features

* ¼ Inch Male Quick Connect Terminals

* Up to 40 Amp Switch Capacity

* Up to 2 Horsepower Rating

* Compatible with SC740 Din Rail Socket

* Top or Side Flanged Case or PC Mounting

* AC Coils up to 240VAC or DC Coils up to 110VDC CHARACTERISTICS Insulat

PC740 Datasheet (197.92 KB)
