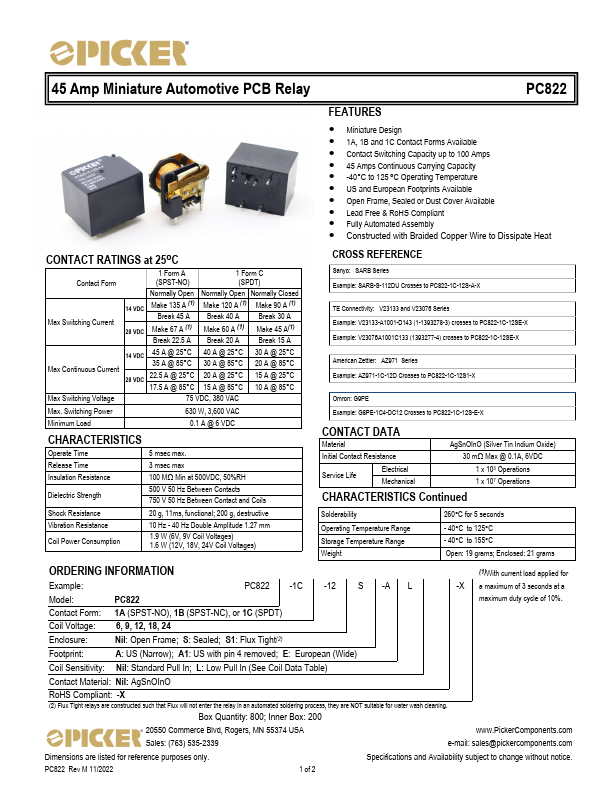

45 Amp Miniature Automotive PCB Relay
PC822
FEATURES
Miniature Design 1A, 1B and 1C Contact Forms Available Contact Switching Capacity up to 100 Amps 45 Amps Continuous Carrying Capacity -40°C to 125 °C Operating Temperature US and European Footprints Available Open Frame, Sealed or Dust Cover Available Lead Free & RoHS Compliant Fully Automated Assembly Constructed with Braided Copper Wire to Dissipate Heat
CONTACT RATINGS at 25oC
Contact Form
1 Form A
1 Form C
(SPST-NO)
(SPDT)
Normally Open Normally Open Normally Closed
Max Switching Current
14 VDC 28 VDC
Make 135 A (1) Break 45 A
Make 67 A (1) Break 22.5 A
14 VDC 45 A @ 25°C
Max Continuous Current
28 VDC
35 A @ 85°C 22.5 A @ 25°C
17.
PC822 Datasheet
