PCD32

Solid State Relay

PCD32 Features

*  Small Dimension for High Packing Density PCB Assembly or Socket Mount

*  2,500 VRMS Opto-Isolation Between Input and Output

*  TTL and CMOS compatible

*  Pin Compatible with Standard Package EMR

*  RoHS Compliant OUTPUT PARAMETERS (Ta = 25°C) Load Voltage Range 24D 0 - 28.8

PCD32 General Description

in the datasheet.  CHARACTERISTICS Dielectric Strength   2,500 VAC, 1 min. (Input yo Output) Insulation Resistance  1,000 MΩ at 500 VDC Max. Capacitance 5 pF (Input to Output) Vibration Resistance  10 Hz - 55 Hz 1.5 mmm DA Shock Resistance Acceleration 980 m/s2, Continuous Surge 6 ms Op.

PCD32 Datasheet (325.78 KB)

Preview of PCD32 PDF

Datasheet Details

Part number:

PCD32

Manufacturer:

Picker

File Size:

325.78 KB

Description:

Solid state relay.

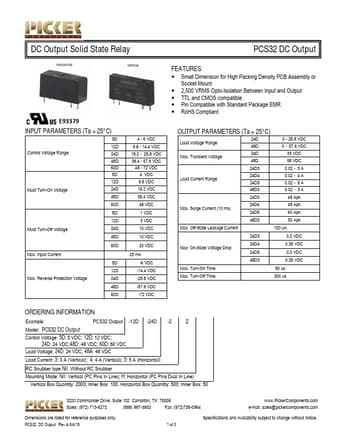

  DC Output Solid State Relay PCS32 DC Output Horizontal E93379 INPUT PARAMETERS (Ta = 25°C) 5D Control Voltage Range 12D 24D 48D 60D 5D 12.
