MMBD914 - Silicon Epitaxial Planar Switching Diode

Ping Jing

Datasheet Details

Part number	MMBD914
Manufacturer	Ping Jing
File Size	545.68 KB
Description	Silicon Epitaxial Planar Switching Diode
Datasheet	MMBD914-PingJing.pdf

Low forward voltage.

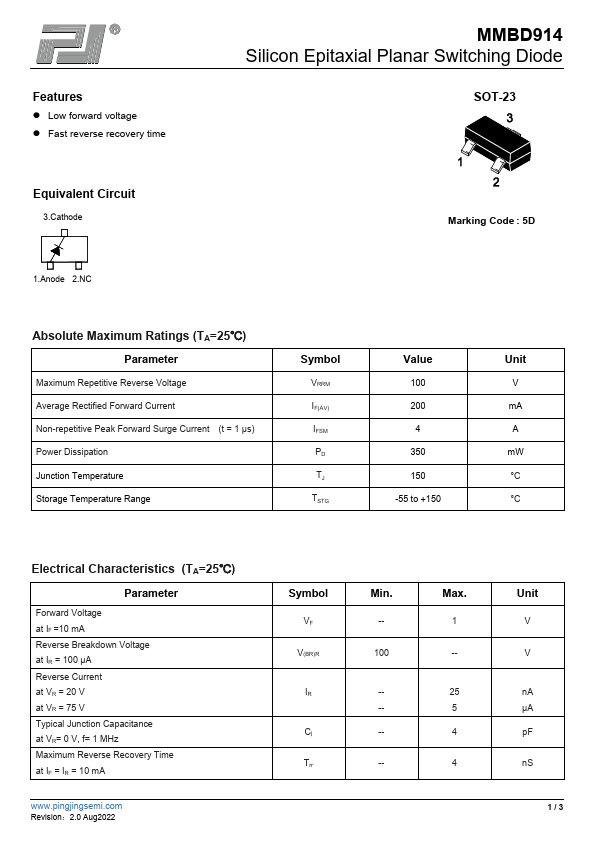

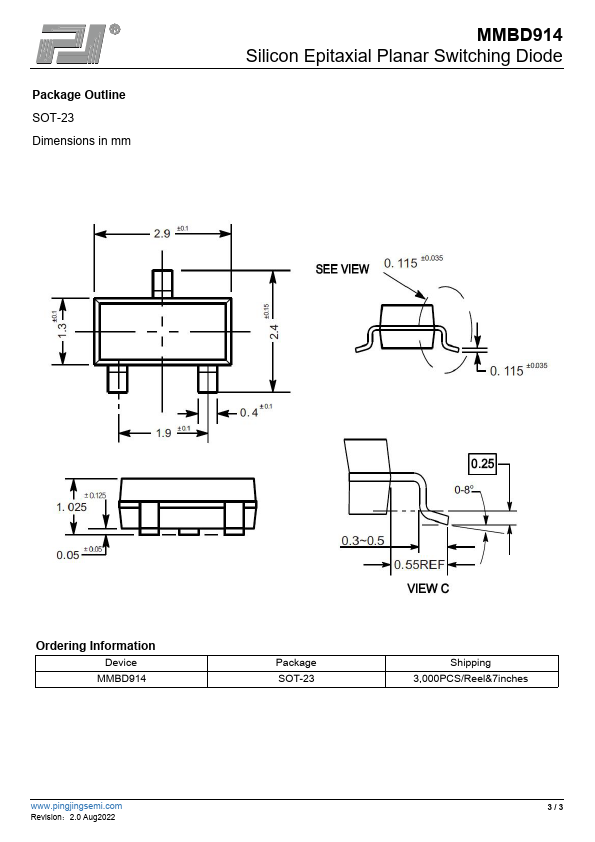

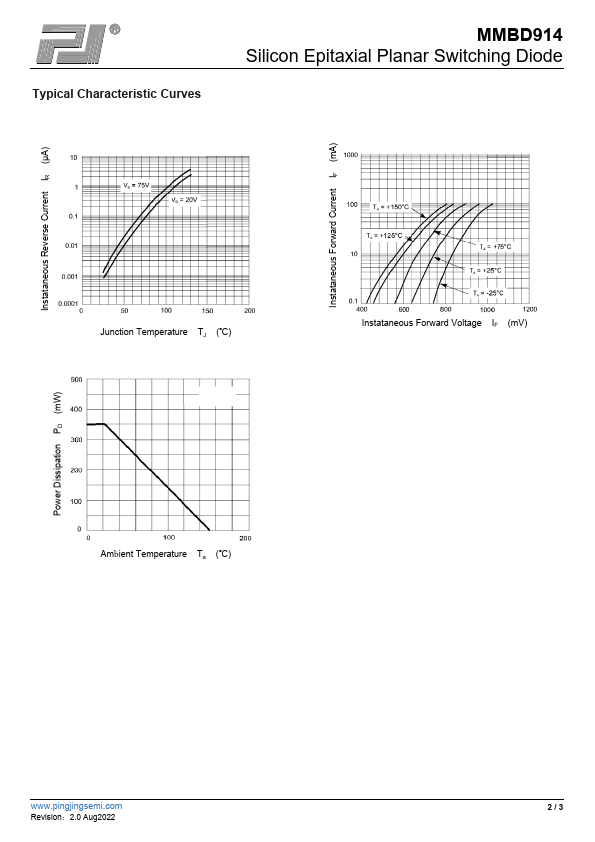

Fast reverse recovery time MMBD914 Silicon Epitaxial Planar Switching Diode SOT-23 Equivalent Circuit 3.Cathode Marking Code : 5D 1.Anode 2.NC Absolute Maximum Ratings (TA=25℃) Parameter Maximum Repetitive Reverse Voltage Average Rectified Forward Current Non-repetitive Peak Forward Surge Current (t = 1 μs) Power Dissipation Junction Temperature Storage Temperature Range Symbol VRRM IF(AV) IFSM PD TJ TSTG Value 100 200 4 350 150 -55 to +150 Unit V mA A mW.
