PCSL016N08NL - 80V N-Channel SGT MOSFET

📥 Download Datasheet

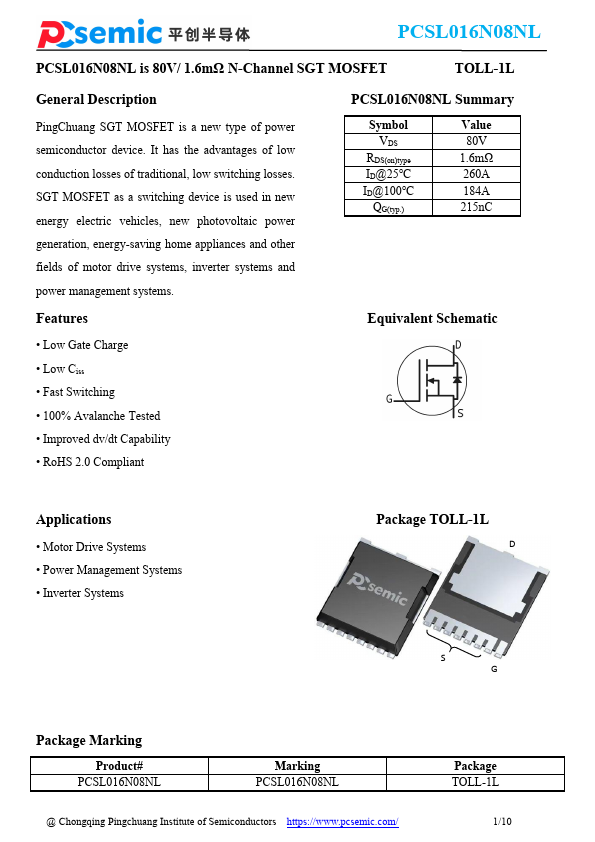

PCSL016N08NL Datasheet Preview — Preview of PCSL016N08NL PDF

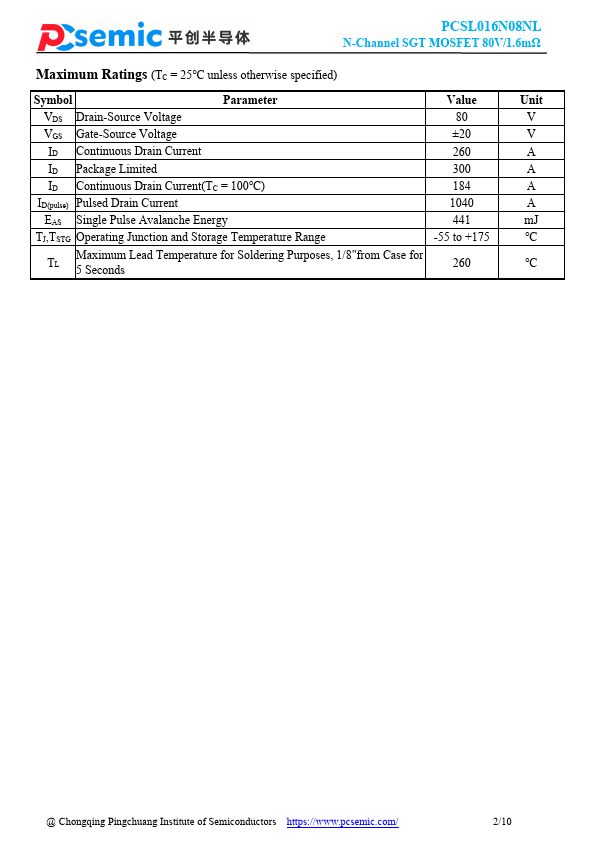

datasheet Preview Page 2

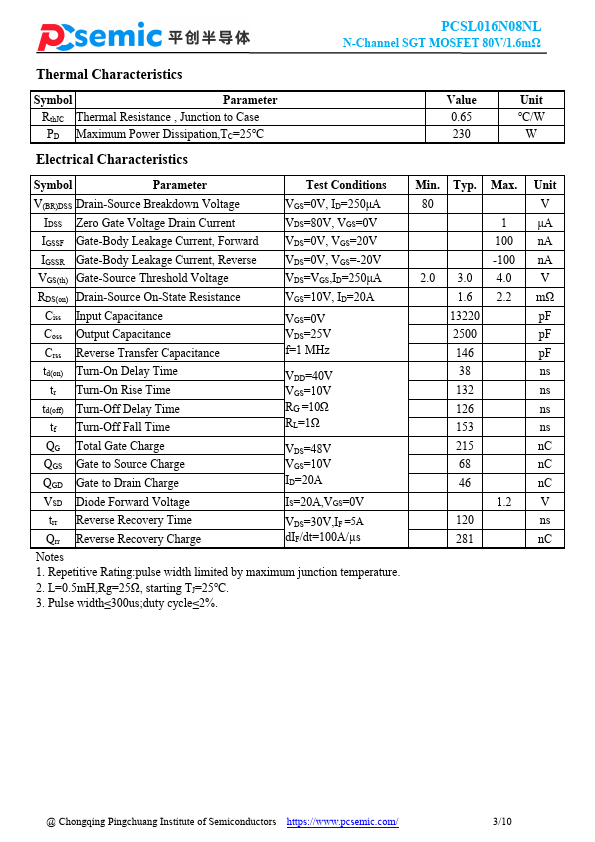

datasheet Preview Page 3

Datasheet Details

Part number	PCSL016N08NL
Manufacturer	Pingchuang
File Size	2.85 MB
Description	80V N-Channel SGT MOSFET
Datasheet	PCSL016N08NL-Pingchuang.pdf

PCSL016N08NL Product details

Description

PingChuang SGT MOSFET is a new type of power semiconductor device.

Features

Low Gate Charge.
Low Ciss.
Fast Switching.
100% Avalanche Tested.
Improved dv/dt Capability.
RoHS 2.0 Compliant PCSL016N08NL Summary Symbol VDS RDS(on)type ID@25℃ ID@100℃ QG(typ. ) Value 80V 1.6mΩ 260A 184A 215nC Equivalent Schematic.
