PDC2305Z Datasheet, Mosfet, Potens semiconductor

PDC2305Z Features

• Mosfet
• -20V,-26A, RDS(ON) =15mΩ@VGS = -4.5V
• Improved dv/dt capability
• Fast switching
• Green Device Available
• Suit for -1.8V Gate Drive Applicat

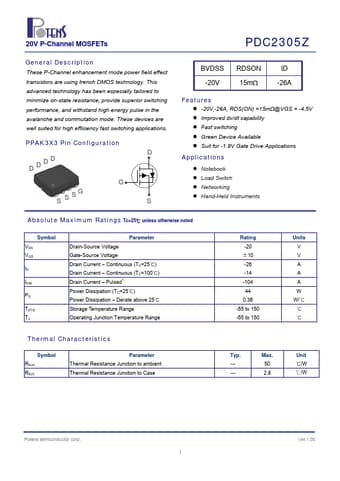

PDF File Details

Part number:

PDC2305Z

Manufacturer:

Potens semiconductor

File Size:

425.64kb

Download:

📄 Datasheet

Description:

P-channel mosfet. These P-Channel enhancement mode power field effect transistors are using trench DMOS technology. This advanced technology has been e

PDC2305Z Application

• Applications PPAK3X3 Pin Configuration DDDD S S SG G D S BVDSS -20V RDSON 15m ID -26A Features
• -20V,-26A, RDS(ON) =15mΩ@VGS = -4
