PAM3106

300mA High PSRR Low Dropout CMOS Linear Regulator

PAM3106 Features

* n Maximum Output Current: 300mA n Dropout Voltage:180mV @ I OUT =300mA and Vo=3.3V n Operating Voltage Range:2.7V to 5.5V n Standby Current: Less than 0.1uA (TYP.) n High Ripple Rejection: 80dB (1kHz) n Fast Start-Up n Quick Discharge O O n Operating Temperature Range:-40 C~+ 85 C n Low ESR Capacito

PAM3106 General Description

The PAM3106 series are precise, low noise, positive voltage LDO regulators manufactured using CMOS processes. The series achieves high ripple rejection and low dropout and consists of a voltage reference, an error amplifier, a current limiter and a phase compensation circuit plus a driver transistor.

PAM3106 Datasheet (566.08 KB)

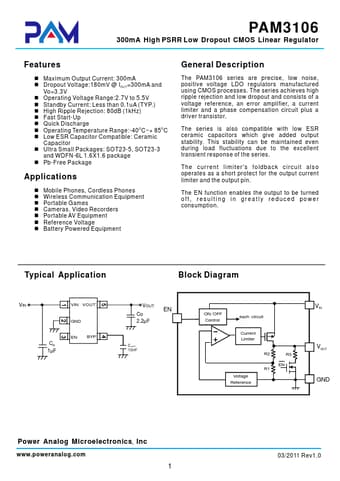

Preview of PAM3106 PDF

Datasheet Details

Part number:

PAM3106

Manufacturer:

Power Analog Micoelectronics

File Size:

566.08 KB

Description:

300ma high psrr low dropout cmos linear regulator.
