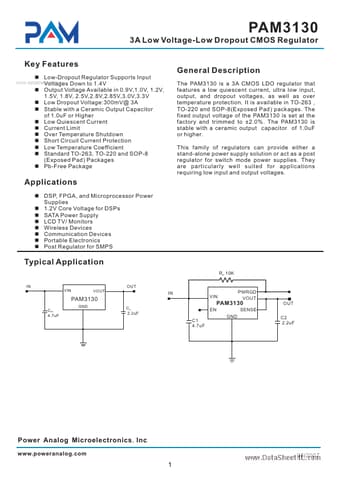

PAM3130, 3A Low Voltage-Low Dropout CMOS Regulator

3A Low Voltage-Low Dropout CMOS Regulator Key .
The PAM3130 is a 3A CMOS LDO regulator that features a low quiescent current, ultra low input, output, and dropout voltages, as well as over temperatu.

Features

* n Low-Dropout Regulator Supports Input www. datasheet4u. com Voltages Down to 1.4V n Output Voltage Available in 0.9V,1.0V, 1.2V, 1.5V, 1.8V, 2.5V,2.8V,2.85V,3.0V,3.3V n Low Dropout Voltage:300mV@ 3A n Stable with a Ceramic Output Capacitor of 1.0uF or Higher n Low Quiescent Current n Current Limit n

Applications

* requiring low input and output voltages. Applications n DSP, FPGA, and Microprocessor Power Supplies n 1.2V Core Voltage for DSPs n SATA Power Supply n LCD TV/ Monitors n Wireless Devices n Communication Devices n Portable Electronics n Post Regulator for SMPS Typical Application R P 10K IN VIN VO
