TIC236 Datasheet - Power Innovations Limited

TIC236 SILICON TRIACS

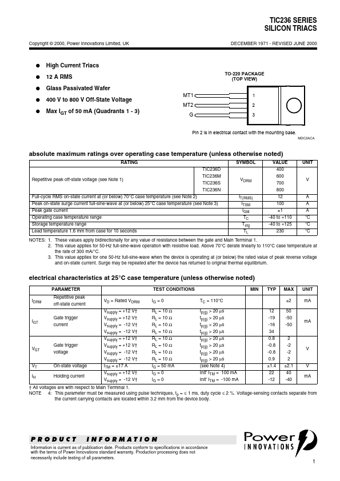

TIC236 SERIES SILICON TRIACS Copyright © 2000, Power Innovations Limited, UK DECEMBER 1971 - REVISED JUNE 2000 G G G G G High Current Triacs 12 A RMS Glass Passivated Wafer 400 V to 800 V Off-State Voltage Max IGT of 50 mA (Quadrants 1 - 3) MT1 MT2 G 1 2 3 TO-220 PACKAGE (TOP VIEW) Pin 2 is in electrical contact with the mounting base. MDC2ACA absolute maximum ratings over operating case temperature (unless otherwise noted) RATING TIC236D Repetitive peak off-state voltage (see Note 1) TIC236.

TIC236_PowerInnovationsLimited.pdf
